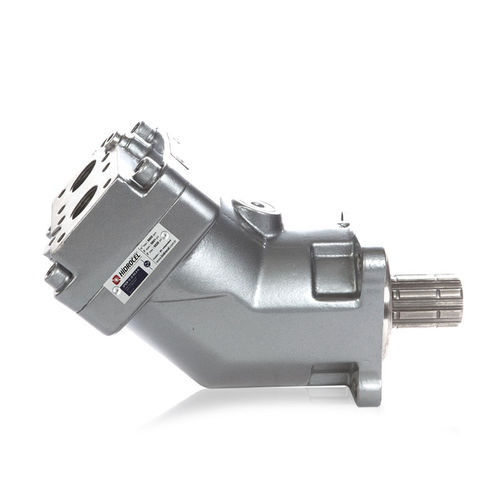

Axial piston hydraulic motor 2PM series
fixed-displacementcompactbent-axis

axial piston hydraulic motor
axial piston hydraulic motor
axial piston hydraulic motor
axial piston hydraulic motor
axial piston hydraulic motor
axial piston hydraulic motor
Add to favorites
Compare this product


Characteristics

Technology
axial piston
Other characteristics
fixed-displacement, compact, bent-axis
Rotational speed

Min.: 3,400 rpm (21,362.83 rad.min-1)

Max.: 8,800 rpm (55,292.03 rad.min-1)

Pressure

Min.: 0 bar (0 psi)

Max.: 400 bar (5,802 psi)

Displacement

Min.: 5 cm³ (0 US fl oz)

Max.: 130 cm³ (4 US fl oz)

Description

Compact Design, Economical Conception, High Power Density, High Efficiency, High Rotationg Speed, From 5 cc to 130 cc, High Pressure, Good Starting Characteristics, Optimized Weight and Size, For Use Mobile and Stationary Applications 2PM ISO Bent Axis Motors starting at; 5cc, 10cc, 12cc, 18cc, 25cc, 32cc, 40cc, 50cc, 56cc. 63cc. 80cc. 108 cc and130cc.

Catalogs

No catalogs are available for this product.

See all of Celebi Hidrocel Ltd‘s catalogs
