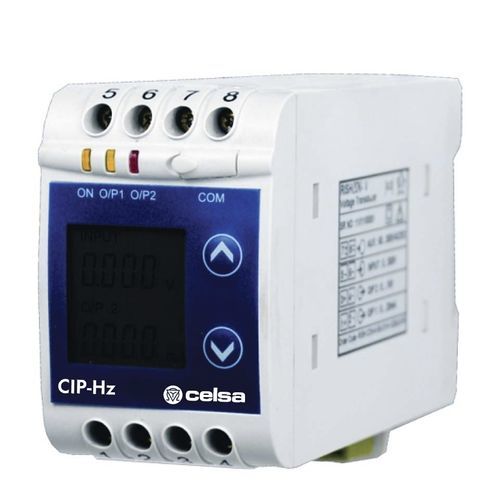

DIN rail transducer CIP-HZ

AC/DCanalogcurrent output

• Onsite selectable output type (DC current/ DC voltage) • Accuracy class 0.2 (IEC/EN60688) • Wide Auxiliary power supply which can be accept any between 60 - 300V AC/DC or 24V - 60V AC/DC • Output response time < 400ms • Fast and easy installation on DIN RAIL or onto a wal or in a panel using optional screw hole bracket • Connection terminal: Conventional screw type • Fully onsite programmable input range • Seven segment LCD Display Optional • Available in single or dual output type • RS485 (MODBUS) Communication Application The CIP-Hz transducer is used for frequency measurement. The outpur signal is proportional to measured frequency and is either load independient DC current or load independient DC voltage. Measuring Input Sine wave or distorted wave form of nominal input voltage with fundamental wave. Analog Output (Single or dual) Isolated analog output which can be set onsite either to voltage or current output.. Accuracy Ouput signal accuracy class 0.2 as per International Standard IEC/ EN60688.
