Current transducers

Multifunction transducer, suitable for three-phase three or four wires systems with unbalanced load (single phase on demand), even with distorted waveforms. It allows the transmission via a communication data interface ...

Current: 5 A - 100 A

These transducers, with integrated current transformer, are suitable to measure the rms value of currents with sinusoidal undistorted waveforms or, for the TRMS types only, also with ...

Current: 10, 15, 5 A

Current transducer; up to 15A a.c. current; signal contitioning, Analog output 4...20mA

Current: 1, 5 A

... comprises of active current measurement device. It comes with an analogue output feature. A maximized efficiency of the entire process with its uninterrupted control is guaranteed. The machine can be utilized in converting ...

Current: 300, 150 A

AC/DC Current Transformer TRMS, 0 to 300A, frequency range DC or 20…2000 Hz, bipolar, analog 0-10V and serial output Modbus RTU / RS485, adjustable range by Dip-Switch and RS485, DIN rail or backplate mount

Current: 5 A - 40 A

... contact-less loop powered current transducer. It has a range of 5A to 40A. This range can be selected with the help of dip switches. Also has the option of single to double polarity. Suitable for din ...

Current: 0 A - 40 A

DC Current Transducer to DC current (4..20 mA - loop powered) T201DC is an isolated, contact-less loop powered direct current transducer. ...

The T201DC100 is a current transducer manufactured by Seneca. This isolated, passive, contact-less and loop-powered direct current transducer offers stress features of ...

... -loop current sensor develops on hall effect principle. There is galvanic isolation between primary and secondary circuit provides accurate electronic measurement of DC, AC or pulse currents. ...

Current: 100 A - 500 A

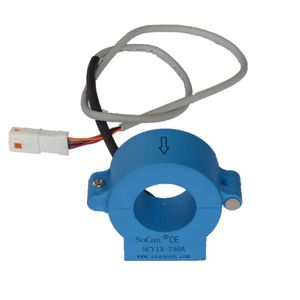

SCY6 Series is a electric open-loop current sensor develops on hall effect principle. There is galvanic isolation between primary and secondary circuit provides accurate electronic measurement of DC, AC ...

Current: 50 A - 300 A

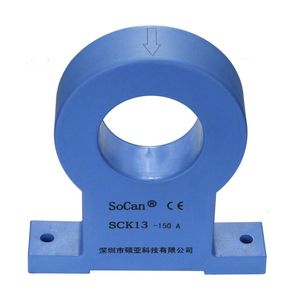

SCK3 Series are open loop current sensor develops on the basic of open-loop hall effect principle, through hole install or surface PCB board-mounting (SCK3P series), window size 10.5*20.5mm. Primary input current ...

... converter equipped with dip-switches. It has a power supply that ranges from 80 up to 250 V AC, scale of 1 or 3 V RMS, and operating temperature from -10°C to +50°C. It is used in applications involving power ...

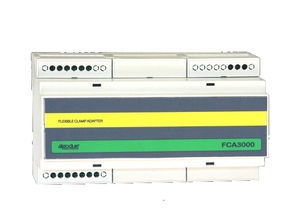

Three phase Rogowski coil converter Three Rogowski coils input channels Three true RMS DC outputs One DC output for channels sum 0...20 mA, 4...20 mA or 0...10 VDC output Response time selectable by ...

Current: 250 A - 5,000 A

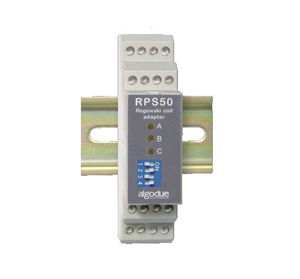

... 4-20 mA DC output. Essentially, it is an integrator, AC current transducer or signal conditioner that is designed to convert the Rogowski coil input voltage to a DC ...

Current: 10 A - 100 A

... sold under the name MAG-J16M420. It is a split core current sensor with a 16 mm opening and is able to transform 10 to 100 Amps of AC current input into an output of 4 to 20 mA DC ...

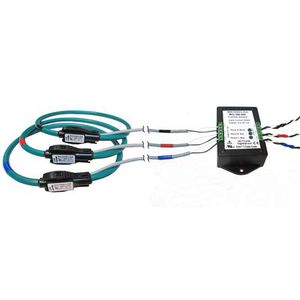

... series integrator and 4-20 mA Transducer (signal conditioner) converts the RopeCT (Rogowski Coil) input voltage to 4-20 mA DC output. The transducer requires a DC loop ...

The EMT-4s is the transducer version of the EMS-96, for DIN-rail mount. This device has the same characteristics as the EMS-96, but has no color display. Instead of the integrated display, the EMT-4s has an interface ...

Current: 80 A - 2,160 A

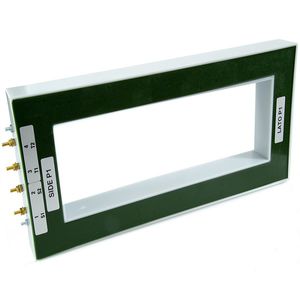

The Dossena toroidal current transducer B series, can be used in conjunction with the earth differential relays DER3B and transducers series D, to allow and to detect homopolar/differential ...

Current: 120 A - 2,460 A

... and Dossena employs a special magnetic alloy so that the ferromagnetic core ensures wide magnetic quality whilst also detect the most minute current values. There is a wide range of transducers ...

Current: 80 A - 2,160 A

... passed inside the transducer. Dossena uses a special magnetic alloy for its toroidal transducers, so the ferromagnetic core, which the toroidal transducers D are made, ...

Current: 1, 5 A

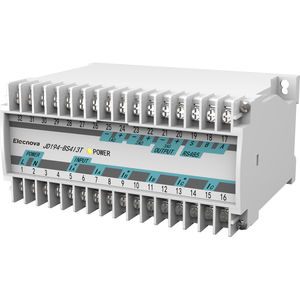

Three-phase AC current transducer JD194-BS4I3T serves for measurement of three-phase AC current signal, and isolated output of 3-channel analog signal, ...

Current: 5 A - 1,600 A

... . Featuring a safe voltage 100mV, 250mV, 333mV, 500mV, 1V, 3V AC output, and 50mA, 80mA, 0.1A, 1A, 5A AC output, the JPS series are an ideal companion to Revenue Grade Energy Meter, Power ...

Current: 30 A - 1,600 A

Applications ◆ Measure AC line current in circuits up to 600 Vac and nominal currents up to 100 amps ◆ Ideal for use in High Performance Power Quality Monitoring (IEC ...

Current: 5 A - 30 A

... -mA Series split-core current transformer is compact and lightweight. It has a 2500:1 or 3000:1 ratio, providing either 25A/10mA or 30A/10mA, depending on the model.The JC08W-mA Series split-core current ...

Current: 1, 5, 10 A

An extensive range of transducers providing measurement, isolation and conversion of electrical parameters into industry standard DC output signals. The range offers protection against high voltage ...

Current: 0 A - 1,000 A

Hall effect transducers ø 35mm To measure unidirectional direct or pulsating current (average value) Input up to 400A d.c. Standard signal output 0...20mA and 4...20mA or 0...10V Field-selectable ...

Current: 300 A

... photovoltaic; new energy vehicles; etc; For the electronic measurement of currents: AC, DC IMPL.,etc.,with galvanic isolation between the primary (high power) ...

Current: 1 A - 5 A

MECE - INDICATING AC CURRENT TRANSDUCER - CLASS 0,5 (standard type) Single AC Current Transducer Precision true RMS class 0,5 measurement, ...

The TAC-311DG is an AC current single function transducer that is made by DEIF. This unit is ideally used for measuring a sinusoidal AC Current that ...

Current: 10 A - 600 A

Current transformer and transducer in one housing Up to 600 A. Design with 0-20 mA or 0-10 V output, without auxiliary supply.

Current: 0 A - 300 A

Highly stabilized and precise fluxgate technology based current transducer, re-engineered for cost sensitive, non-intrusive, isolated DC and AC current ...

Current: 0 A - 10 A

... measured AC current/voltage to the DC current/voltage output according to the linear scale Excellent temperature characteristic and good working stability Configuration ...

Current: 200, 600, 2,000 A

All ZES ZIMMER power meters of the LMG series, the current sensors of PCT series and the voltage sensors of the HST series are carefully tested, adjusted and calibrated prior to shipment and are subject ...

Line splitter for current measurement Works on 120V lines ,15 ampere capacity Modes: Direct reading (x01) and increased sensitivity (x10) Compatible with most clamp-ons Voltmeter input jacks

... proportion to the current flowing in the conductor monitored by the LCSC10T12. Connecting the power supply to terminals C & D provides a 4 to 20mA DC current. Connect ...

Current: 0 A - 25 A

Product: 2-elements AC current transducer Series: CE-IJ21 Input range: 0-0.5~25A AC Output: 0-5V (Vz), 0-20mA (Iz), 4-20mA (Iy) Accuracy: 0.2%, 0.5% Response ...

Current: 350 A

- Jaw opening 30 mm - Current transducer 350A AC - Out put voltage 1mV AC/1A AC - Bandwidth 40 Hz to 60 Hz - Safety : 600 V CAT III

... range from 0 to 1000A AC >5000V electric Isolation ±333mV output 20Hz to 30kHz frequency range of operation Phase angle < 1 degree at 50% of rated current Accuracy of ±0.7% , ...

Current: 0.2 A - 120 A

Clamp Adaptors MODEL 8112 • AC CLAMP ADAPTOR • Model 8112 clamp adaptor is designed to be an AC current/voltage conversion probe capable of measuring AC current ...
