Transformer current transducer Q52A3L

ACthree-phasesplit-core

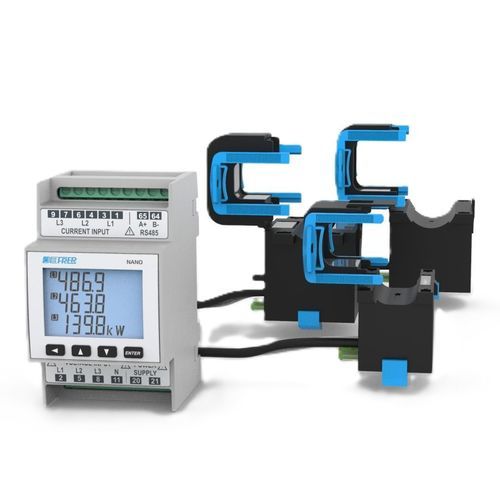

OverviewThe kit includes the multifunction analyzer NANO 5H (NANO H series) and three mini split-core current transformers (CTs). It is designed for low-voltage (LV) three-phase 3- or 4-wire systems and supports measurement under unbalanced loads and distorted waveforms. The compact split-core CTs enable installation in confined spaces, making the kit suitable for retrofit projects and for monitoring networks in new installations.Main features of the NANO 5HThe NANO 5H provides the main electrical quantities, including bidirectional active and reactive energy counters, plus a set of advanced measurements for extended monitoring and diagnostics. RS485 communication with Modbus RTU protocol is included as standard.Available documentationDatasheetUser manualCommunication protocols - Modbus RTUAvailable optionsTechnical drawing (PDF)Technical specificationsProduct: kit composed of the NANO 5H analyzer and 3 mini split-core current transformersSeries: NANO HApplication: low voltage (LV) three-phase 3- or 4-wire systemsCompatible with unbalanced loads and distorted waveformsMeasurements: all main electrical quantities including bidirectional active and reactive energyAdvanced measurements available for extended monitoring and analysisCommunication: RS485 with Modbus RTU protocol (standard)CTs: miniaturized split-core design for installation in restricted spaces and retrofitSuitable for network monitoring in new installations and retrofit applications
