Multifunction power metering Q52A3L

Description

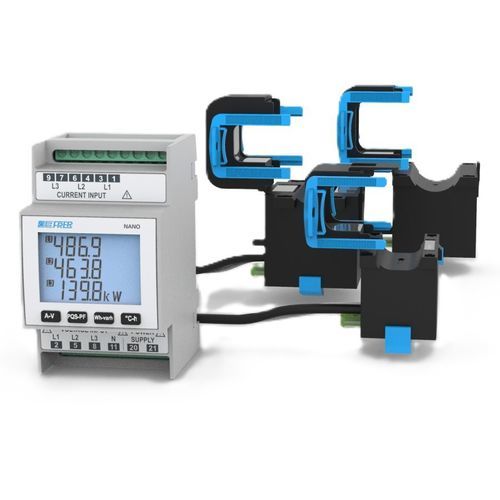

The kit includes a NANO series multifunction analyzer and three mini split current transformers. It is designed for use in three-phase electrical systems with three- or four-wire configurations at low voltage (LV), including unbalanced loads and distorted waveforms, to acquire all principal measurements. The compact size of the mini split CTs enables installation in very confined spaces, making the system suitable for retrofit in existing installations and for monitoring electrical networks in new plants.

Main features
The NANO displays the main network quantities, including active and reactive energy totals. Four front keys allow immediate access to the required measurement without browsing all pages. The sequence of viewable measurements is indicated on each key; repeated presses access the corresponding display pages simply and clearly. Large character size and adjustable backlight with five intensity levels ensure clear readability at distance and in varying light conditions.

Documentation available

• Datasheet
• User manual
• Available options
• Technical drawing (PDF)

Characteristics / Technical specifications

• Series: NANO
• Model shown on page: Q52A3L
• Kit contents: 1 NANO multifunction analyzer + 3 mini split current transformers
• Application: three-phase systems with 3- or 4-wire configurations, low voltage (LV)
• Measurements: main network quantities, active and reactive energy totals
• Display: large characters, adjustable backlight with 5 intensity levels
• User interface: 4 front keys with direct access to measurements
• Installation: suitable for confined spaces, recommended for retrofit and new installations
• Technical documentation and drawings available (datasheet, manual, options, technical drawing PDF)
