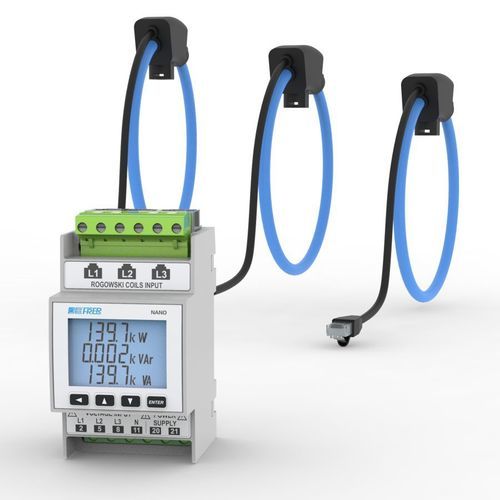

Multifunction power metering Q52R3H

Description
The kit comprises a modular multifunction power analyzer for LV/MV and three Rogowski coils. The analyzer input does not require external integrators. Suitable for three-phase 3- or 4-wire electrical systems, including unbalanced loads and distorted waveforms, it acquires fundamental measurements including voltages, currents, powers and energies (delivered and absorbed). Connection is simplified via RJ45 connectors. The system is suitable for retrofit in existing installations, laboratory use and monitoring of electrical networks in new plants.

Kit contents

• Modular multifunction analyzer (NANO series)
• 3 Rogowski coils

Operating notes

• Suitable for three-phase 3- or 4-wire networks
• Compatible with unbalanced loads and distorted waveforms
• Available measurements: voltages, currents, powers, energies (delivered and absorbed) and other primary electrical quantities
• Simplified connection via RJ45 connectors
• Analyzer input: no external integrators required

Available documentation

• Datasheet
• User manual
• Communication protocols - Modbus RTU

Characteristics / technical specifications

• Brand: FRER
• Commercial name (model): Q52R3H
• Series: NANO
• Application: LV / MV (low/medium voltage)
• Network configuration: three-phase 3 or 4 wires
• Number of coils included: 3 Rogowski coils
• Analyzer input: no external integrators required
• Connections: RJ45 for simplified wiring
• Supported measurements: currents, voltages, powers, energies (delivered and absorbed) and typical multifunction analyzer quantities
• Recommended uses: retrofit, laboratory, monitoring of electrical networks in new plants
• Provided documentation: datasheet, user manual, Modbus RTU protocols
