Multifunction power metering Q52D3L

Overview

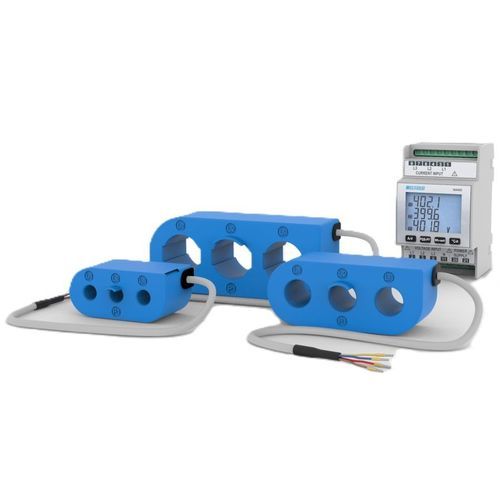

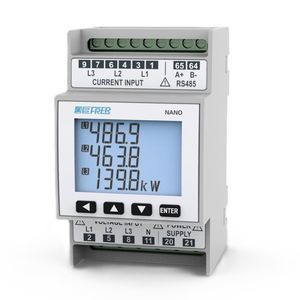

Compact multifunction analyzer for use in three-phase low-voltage (LV) systems, with direct input via triple miniature CT compatible with modular breaker pitches. Displays main electrical quantities and meters active and reactive energy. Designed for 3-module DIN mounting.

Main features

• Direct input via triple miniature CT (63 A - 125 A - 160 A - 250 A) compatible with modular breaker pitches
• Display of main electrical quantities and active and reactive energy counters
• Four front keys for direct access to measurements; measurement sequence indicated on keys
• Display with large-size characters for good readability and backlight adjustable in 5 intensity levels
• Simple and clear operation: navigate display pages by repeated key presses

Available downloads

• Datasheet (PDF)
• User manual (PDF)
• Available options (PDF)

Technical characteristics / specifications

• Model: Q52D3L
• Series: NANO (3 DIN modules)
• Type: Three-phase network analyzer for LV
• Current input: via triple miniature CT, versions for 63 A, 125 A, 160 A, 250 A
• Functions: multifunction measurements of network quantities, active and reactive energy metering
• User interface: 4 front keys for direct access to functions
• Display: large-size characters; backlight adjustable on 5 levels
• Mounting: compatible with modular breaker/module pitches (3 DIN module mounting)
