Multifunction power metering Q52S3L

Overview

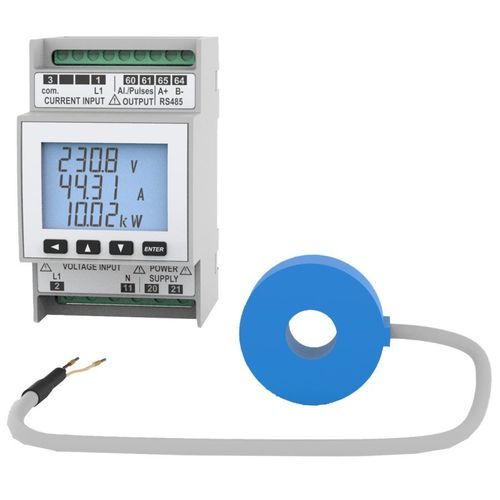

Compact multifunction single-phase network analyzer designed for low-voltage industrial applications. Displays key electrical parameters of the network and provides bidirectional active and reactive energy metering. A miniaturized current transformer (CT) is supplied to enable direct 63 A amperometric input, reducing wiring time and cost.

Key features

• Display of primary electrical network quantities
• Bidirectional active and reactive energy metering
• Direct 63 A amperometric input via supplied miniaturized CT
• Compact module for 3-module DIN-rail mounting

Communication and outputs

• Optional RS485 communication interface - Modbus RTU
• Option for 1 or 2 programmable alarm outputs
• Outputs can be configured as pulse output for energy retransmission (active or reactive)

Available documentation

• Datasheet
• User manual
• Communication protocols - Modbus RTU
• List of available options

Characteristics / technical specifications

• Model: Q52S3L
• Type: Single-phase network analyzer for low voltage (LV)
• Series: NANO - 3 DIN-module module
• Amperometric input: direct 63 A via supplied miniaturized CT
• Measurements: display of main electrical quantities and bidirectional active/reactive energy totals
• Communication (optional): RS485 - Modbus RTU
• Outputs (optional): 1 or 2 programmable alarm outputs or pulse output for energy retransmission
