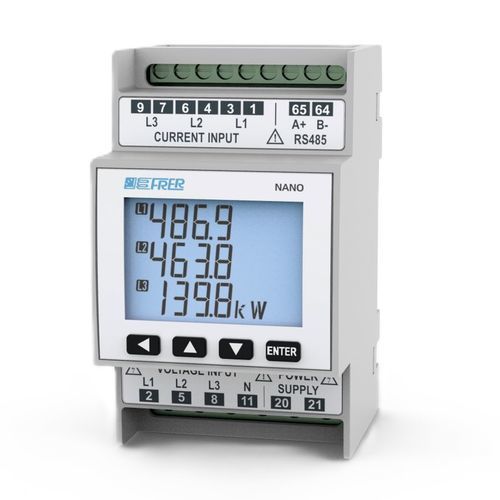

Multifunction power metering Q52P3H

OverviewCompact multifunction network analyzer for use in three‑phase 3‑ or 4‑wire systems with unbalanced loads for LV/MV. NANO H variant includes advanced measurements and THD reading. Modular DIN‑rail mounting (3 modules). Device designed for monitoring key electrical parameters and for bidirectional active and reactive energy metering.Main featuresCompact three‑phase analyzer for LV/MV applicationsSupports 3‑ or 4‑wire systems with unbalanced loadsNANO H: additional advanced measurements including THDBidirectional active and reactive energy meteringRS485 communication — Modbus RTU standardOptional outputs: one or two programmable alarm outputs; alternative pulse output for energy retransmission or integration with analog output modulesMounting: modular DIN‑rail — 3 modulesAvailable documentationDatasheetUser manualCommunication protocols — Modbus RTUOptions listTechnical characteristics / specificationsSeries: NANO (H variant)Type: Compact isolated multifunction network analyzerApplication: Three‑phase LV/MV, 3‑ or 4‑wire systems with unbalanced loadForm factor: modular, 3 DIN modulesMeasurements: main electrical quantities, bidirectional active/reactive energy, THD reading (H)Communication: RS485 — Modbus RTU (standard)Outputs/options: 1 or 2 programmable alarm outputs or pulse output for energy retransmission; compatible with analog output modules
