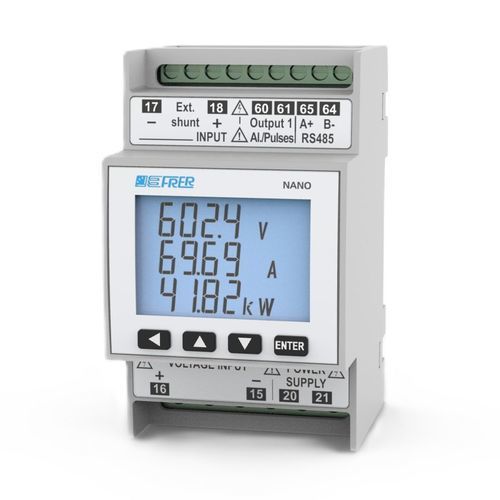

Multifunction power metering Q52C3L

Description
Multifunction analyzer designed for use in direct current (DC) systems. Voltage input is connected directly to the line; the current input is derived from a shunt. The primary current value is configurable via a simple programming menu. Provides key DC electrical quantities including bidirectional energy and ampere-hour (Ah) counting, plus an additional set of advanced measurements for enhanced system monitoring. Supplied with RS485 - Modbus RTU communication as standard; option for one programmable alarm output configurable alternatively as a pulse output for energy or Ah retransmission.

Documentation available

• Datasheet
• User manual
• Communication protocols - Modbus RTU
• Available options

Technical characteristics / specifications

• Model: Q52C3L
• Series: NANO
• Type: multifunction network analyzer for DC lines
• Format: 3 DIN modules
• Voltage input: directly connected to the line
• Current input: derived from shunt; primary current adjustable via menu
• Measurements: DC electrical quantities, bidirectional energy, Ah counting, advanced monitoring measures
• Communication: RS485 - Modbus RTU (standard)
• Outputs: optional 1 programmable alarm output or pulse output for energy/Ah retransmission
• Mounting: DIN rail
• Applications: monitoring of direct current systems
