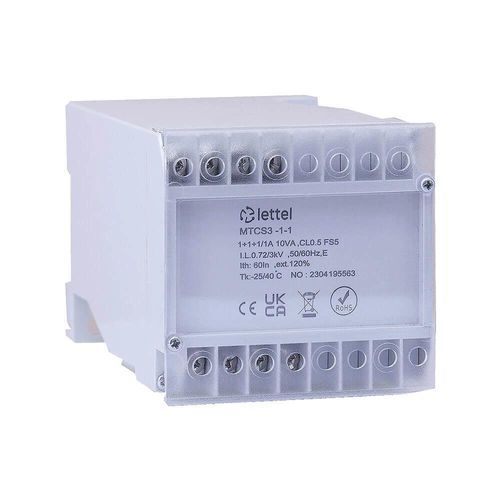

Transformer current transducer MTCS series

DIN rail

Summators allow the addition of currents measured by several current transformers: - Inputs: The MTCS2-3-4 current summator is available in versions with 2, 3, or 4 inputs for current transformers with 1A or 5A secondary. - Output: 0-1A / 0-5A. - Enclosure: The summator's enclosure dimensions are L75, D112.5, H70 mm. It can be mounted on a DIN rail in an electrical cabinet or surface-mounted. - Connection: Screw terminals. - Accuracy: The MTCS2-3-4 current summator offers an accuracy of 0.5 for a maximum absorbed power of 10VA. - Summing CTs: The current summator allows the accumulation of currents measured by 2, 3, or 4 current transformers installed on different circuits of the same phase. - Compliance: CE, RoHS, Reach. - Applicable standards: IEC61010, IEC61869, 2006/95/EG. - Number of inputs: Up to 8 inputs: MTCS5-6-7-8 Variants and order codes: Order code | Number of inputs | Input current | Output signal | Stocked product MTCS2-1-1 | 2 | 0-1A | 0-1A | instock MTCS2-5-5 | 2 | 0-5A | 0-5A | instock MTCS3-1-1 | 3 | 0-1A | 0-1A | instock MTCS3-5-5 | 3 | 0-5A | 0-5A | instock MTCS4-1-1 | 4 | 0-1A | 0-1A | outofstock MTCS4-5-5 | 4 | 0-5A | 0-5A | outofstock Technical documentation available: - Current summators: operation, installation, regulations - Current transformers Technical features / Specifications: - Available in 2, 3, or 4 input versions for 1A or 5A secondary CTs - Output: 0-1A or 0-5A - Enclosure dimensions: L75 x D112.5 x H70 mm - DIN rail or surface mounting - Screw terminal connections - Accuracy: 0.5 - Max absorbed power: 10VA - Compliance: CE, RoHS, Reach - Standards: IEC61010, IEC61869, 2006/95/EG
