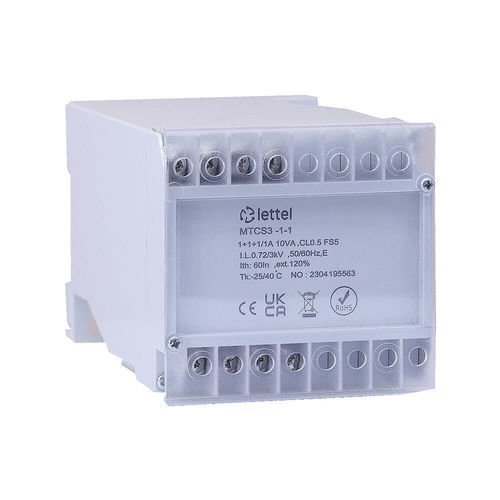

Transformer current transducer MTCS series

fixedDIN railAC

Description
The summators allow adding the currents measured by several current transformers. The MTCS sums the currents measured by 2, 3 or 4 current transformers installed on different circuits of the same phase.

Characteristics

• Inputs : Available in 2-, 3- or 4-input versions for current transformers with 1 A or 5 A secondary.
• Output : 0-1A / 0-5A.
• Enclosure : Dimensions L75 x D112.5 x H70 mm. DIN-rail or surface mounting.
• Connections : Screw terminals.
• Accuracy : Class 0.5 for a maximum burden of 10 VA.

Features

• CT summation : Allows summing currents measured by 2, 3 or 4 current transformers installed on different circuits of the same phase.

Standards and certifications

• Compliances : CE, RoHS, REACH.
• Applicable standards : IEC61010, IEC61869, 2006/95/EG.

Variants and ordering codes
Order code | Number of inputs | Input current | Output signal | Stock status
MTCS2-1-1 | 2 | 0-1A | 0-1A | in stock
MTCS2-5-5 | 2 | 0-5A | 0-5A | in stock
MTCS3-1-1 | 3 | 0-1A | 0-1A | in stock
MTCS3-5-5 | 3 | 0-5A | 0-5A | in stock
MTCS4-1-1 | 4 | 0-1A | 0-1A | out of stock
MTCS4-5-5 | 4 | 0-5A | 0-5A | in stock

Resources

• Technical datasheets and product manuals available (documentation and user manual for MTCS summators).

technical specifications

• Model / series : MTCS (current transformer summator)
• Number of inputs : 2, 3 or 4 (available versions); other references in the range offer variants up to 8 inputs.
• Input secondary : 1 A or 5 A (depending on variant).
• Output signal : 0-1A or 0-5A.
• Accuracy : 0.5 (for burden ≤ 10 VA).
• Enclosure : L75 x D112.5 x H70 mm, DIN-rail or surface mounting.
• Connections : Screw terminals.
• Compliances : CE, RoHS, REACH; standards IEC61010, IEC61869, 2006/95/EG.
