Current transformer MTCF-100100V series

dryAC

Description

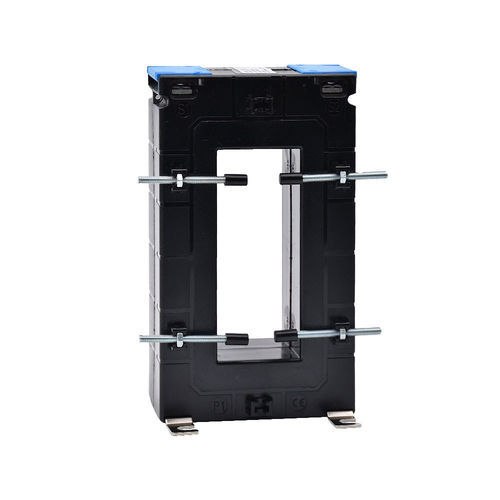

The MTCF closed current transformers combine measurement accuracy with straightforward integration. They are designed to measure current on busbars with a specific rectangular opening and provide a standardized secondary output.

Features

• Electrical: closed current transformers with primary currents of 1000 A, 1500 A or 2000 A depending on the model. Secondary 5 A.
• Physical: opening for busbar 103×41 mm. Enclosure dimensions: H170 × W99 × D67 mm. Surface mounting or on-conductor. Sealable terminal covers.
• Accuracy: class 0.5.
• Documentation: technical documentation available for the MTCF range (range brochure, product manual, general catalogue).

Benefits

• Integration: rectangular opening adapted to measure the current of a busbar.
• Safety: sealable terminal covers to prevent unauthorized handling.

Standards and certifications

• Compliances: CE, RoHS, REACH.
• Applicable standards: IEC 61869-1 & 2, IEC 60044-1, BS 3938, IS 2705-1,2 & 3.

Available variants

• Primary current: other values possible on request.
• Secondary current: 1 A available as a variant.
• Accuracy classes: 0.2 – 0.2S – 0.5S (available on request).

Variants and ordering codes
Order code | TC type | Primary current | Stock status
MTCF-100100V-1000-5 | Closed | 1000 A | in stock
MTCF-100100V-1500-5 | Closed | 1500 A | in stock
MTCF-100100V-2000-5 | Closed | 2000 A | out of stock

Downloads

• MTCF range brochure (pdf, 0.72 MB)
• General catalogue (pdf, 33.71 MB)
• Complete manual (pdf, 0.67 MB)

Related products

• MAE-1 (flush-mounted measurement unit – Modbus and relay outputs)
• ANT868-S (whip antenna, SMA connector)
• MTCR-36-600-MEP (set of Rogowski sensors 600 A Ø36 mm)
• MTCR-100-1000 (flexible Rogowski coil 1000 A Ø100 mm)
• MCT2-163M (MID-approved single-phase meter)
• MSC-TCR (Enerclip Rogowski CT, various models)

Technical specifications

• Model: MTCF series (ex. MTCF-100100V)
• Primary current: 1000 A, 1500 A, 2000 A (variants possible)
• Secondary current: 5 A (1 A version available)
• Opening for busbar: 103 × 41 mm
• Enclosure dimensions: H 170 mm × W 99 mm × D 67 mm
• Mounting: surface or on conductor
• Terminal covers: sealable
• Standard accuracy class: 0.5 (other classes available: 0.2; 0.2S; 0.5S)
• Compliances: CE, RoHS, REACH
• Standards: IEC 61869-1 & 2, IEC 60044-1, BS 3938, IS 2705-1/2/3
• Main order codes: MTCF-100100V-1000-5, MTCF-100100V-1500-5, MTCF-100100V-2000-5
• Available documents: MTCF brochure, general catalogue, product manual (PDF)
