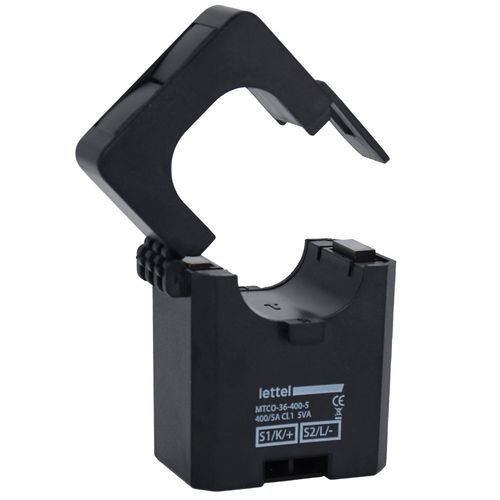

Current transformer MTCO-36 series

dryfor energy metersopening

The MTCO split-core current transformers combine accuracy with ease of integration: - **Electrical:** - Transformers for primary current from 400 to 600A depending on models. - Secondary 5A - Accuracy class 1. - **Physical:** - The housing of this current transformer measures H92, L66, P48.5 mm and has an opening for cable-type conductor Ø 36 mm max. - The CT is mounted on the conductor using a cable tie. - **Accuracy:** - Class 1. - **Technical documents:** - Technical documents available on request. - **Integration:** - Thanks to their split-core, these current transformers can be installed without disconnecting power cables. A cable tie can be used to secure the CT on the conductor. - **Safety:** - Terminal covers to prevent accidental contact with electrical connection terminals. - **Compliance:** - CE, RoHS, Reach. - **Applicable standards:** - EN61869-1:2009, EN61689-2:2012. - **Available variants:** - Primary current: Other values. - Secondary current: 1A, mV, mA - Accuracy class: 0.5% - Wire output: Customizable length. - **Associated products:** - The associated meter or measurement unit must have a 5A current input. - Compatible with all types of electrical meters or measurement units with a 5A input. **Features / Technical Specifications:** - Type: Split-core current transformer - Model: MTCO-36 - Primary current: 400A, 500A, 600A depending on version - Secondary current: 5A - Accuracy class: 1 - Conductor opening: Ø36 mm max - Dimensions (HxLxP): 92 x 66 x 48.5 mm - Mounting: Cable tie on conductor - Compliance: CE, RoHS, Reach - Standards: EN61869-1:2009, EN61689-2:2012
