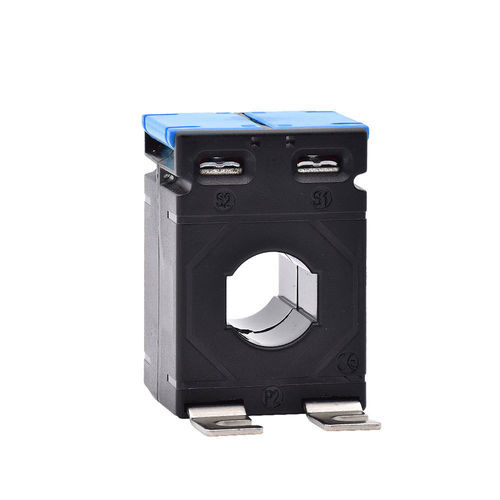

Current transformer MTCF-452140 series

dryfor energy metersDIN rail mount

The MTCF current transformers combine precision with ease of integration: - Electrical: - Primary current from 60 to 300A depending on the model. - Secondary 5A - Accuracy class 0.5 (except 60/5A rating class 1). - Physical: - Opening for cable Ø 21 mm or bar 10×21 mm. - Case dimensions: H65, W46, D40 mm. - Surface mounting or on DIN rail with MTCF-45-DIN accessory (to be ordered separately). - Sealable terminal covers. - Accuracy: - Class 0.5 (except 60/5A rating class 1). - Technical documents: - Current transformers article - Integration: - Compact size. - Safety: - Sealable terminal covers to prevent electrical risk or fraud. - Compliance: - CE, RoHS, REACh. - Applicable standards: - IEC61869-1&2, IEC60044-1, BS3938, IS2705-1,2&3. - Available variants: - Primary current: other values. - Secondary current: 1A. - Accuracy classes: 0.2 – 0.2S – 0.5S. - Accessories: - DIN rail mounting base MTCF-45-DIN to be ordered separately. - Associated products: - The associated meter or measuring unit must have a 5A current input. - Compatible with all types of electric meters or measuring units with 5A input. - DIN rail mounting with the DIN rail support accessory. - Variants and order codes: - Order code: MTCF-452140-60, Primary current: 60A, Stocked product: In stock - Order code: MTCF-452140-100, Primary current: 100A, Stocked product: In stock - Order code: MTCF-452140-150, Primary current: 150A, Stocked product: In stock - Order code: MTCF-452140-200, Primary current: 200A, Stocked product: In stock - Order code: MTCF-452140-250, Primary current: 250A, Stocked product: In stock - Order code: MTCF-452140-300, Primary current: 300A, Stocked product: In stock - Technical specifications: - Primary current: 60 to 300A (depending on model) - Secondary current: 5A - Accuracy class: 0.5 (except 60/5A class 1) - Opening: cable Ø21 mm or bar 10×21 mm - Case dimensions: H65 x W46 x D40 mm - Mounting: surface or DIN rail (accessory required) - Sealable terminal covers - Compliance: CE, RoHS, REACh - Standards: IEC61869-1&2, IEC60044-1, BS3938, IS2705-1,2&3
