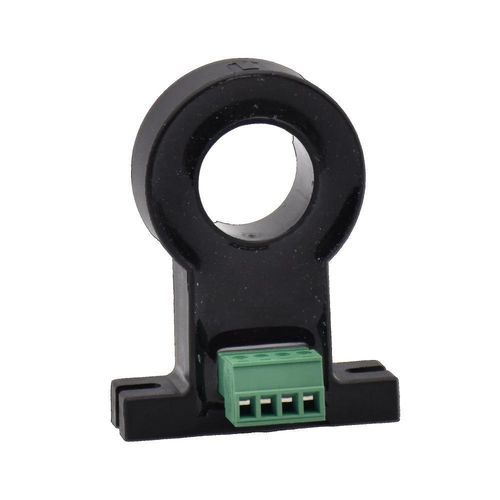

Closed-loop Hall effect current sensor MTCCF-21 series

The MTCCF Hall Effect current sensors combine precision with ease of integration. - **Electrical Characteristics:** Primary current from 50 to 600A depending on the model. Input and output 12V DC. Accuracy class 1. - **Physical Characteristics:** Cable opening Ø21 mm. Housing dimensions: H66, W50, D16 mm. Surface mounting. Screw connection on pluggable terminal block. - **Accuracy:** Class 1. - **Standards and Certifications:** Compliance: CE, RoHS. Applicable standards: IEC60950-1:2001, EN50178:1998, SJ20790-2000. - **Compatibility:** Hall Effect current sensor compatible with MAP4-DC1 and MAP4-DC9 measurement units. When used with a MAP4-DC9 or MM4-DC12 unit, two AMP1-15-12 power supplies are required. - **Variants and Order Codes:** - MTCCF-21-50-12: 50A, in stock - MTCCF-21-100-12: 100A, in stock - MTCCF-21-200-12: 200A, in stock - MTCCF-21-300-12: 300A, in stock - MTCCF-21-400-12: 400A, in stock - MTCCF-21-600-12: 600A, in stock - **Features / Technical Specifications:** - Type: Closed Hall Effect current sensor - Primary current: 50 to 600A depending on model - Cable opening: Ø21 mm - Housing dimensions: H66 x W50 x D16 mm - Mounting: Surface - Input/output: 12V DC - Accuracy: Class 1 - Connection: Screw on pluggable terminal block - Compliance: CE, RoHS - Standards: IEC60950-1:2001, EN50178:1998, SJ20790-2000
