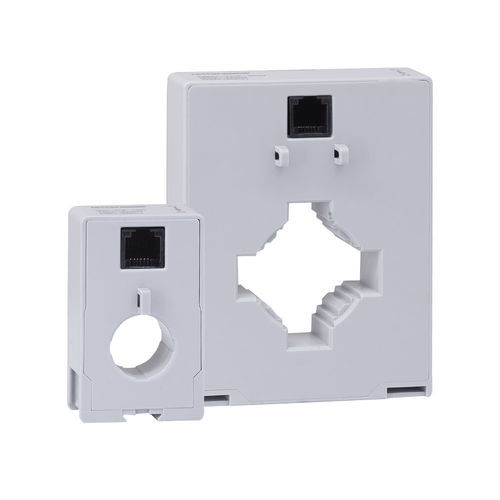

Current transformer MSC-TCF series

instrumentdrysurface-mount

The closed current transformers MSC-TCF combine accuracy with ease of integration: - Electrical: Measure current up to 600A, with an accuracy of 0.1%. - Physical: 4 housing sizes according to the measured current range. The CT is mounted on the conductor using a cable tie or screws, on a DIN rail or surface-mounted. - Integration: Compact housing; Connection via RJ12 cable. 3 possible mounting types. - Accuracy: 0.1%. - Compliance: CE, RoHS, REACh. - Associated Products: MSC-Nx measurement modules: connect to an MSC-Nx measurement module. The current transformers connect to Enerclip measurement modules models MSC-N1, MSC-N2, MSC-M4, or MAP4-34RJ using an RJ12 cable MSC-3RJ. - Resources: Enerclip solution presentation Variants and order codes: - Order Code: MSC-TCOF-30, Primary Current: 30A, Conductor Opening: Ø 8 mm, Product Stocked: instock - Order Code: MSC-TCF-100, Primary Current: 100A, Conductor Opening: Ø 18 mm, Product Stocked: instock - Order Code: MSC-TCF-200, Primary Current: 200A, Conductor Opening: Ø24 / 12×32 mm, Product Stocked: instock - Order Code: MSC-TCF-400, Primary Current: 400A, Conductor Opening: Ø29 / 12×42 mm, Product Stocked: instock - Order Code: MSC-TCF-600, Primary Current: 600A, Conductor Opening: Ø29 / 12×42 mm, Product Stocked: instock Features / Technical Specifications: - Measure current up to 600A - Accuracy: 0.1% - 4 housing sizes - Mounting on conductor by cable tie, screws, DIN rail, or surface-mounted - Connection via RJ12 cable - CE, RoHS, REACh compliance - Compatibility with MSC-Nx measurement modules, Enerclip (MSC-N1, MSC-N2, MSC-M4, MAP4-34RJ)
