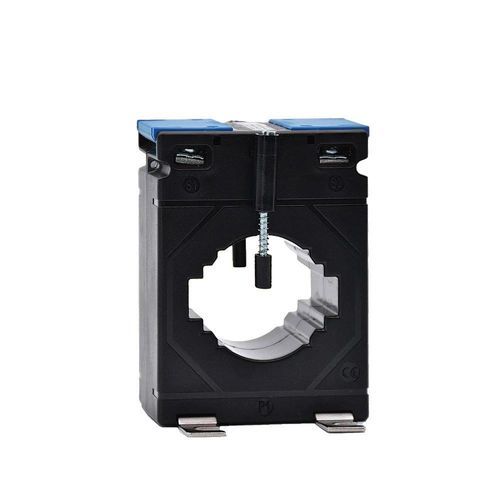

Current transformer MTCF-745045 series

dryfor energy metersDIN rail mount

The MTCF current transformers combine precision with ease of integration: - **Electrical:** - Primary current 800 or 1000A depending on models. - Secondary 5A - Precision class 0.2S. - **Physical:** - Cable opening Ø 41 mm or bar 12.5×51, 21×41 or 31×31 mm. - Housing dimensions: H98, W74, D45 mm. - Surface mounting, on conductor or DIN rail with MTCF-6274-DIN accessory to be ordered separately. - Sealable terminal covers. - **Precision:** - The 0.2S precision class is suitable for electricity billing applications or laboratory measurements. - **Technical documents:** - Current transformers - **Advantages:** - Integration: compact size. - Safety: sealable terminal covers to prevent electrical risk or fraud. - **Standards and certifications:** - Compliance: CE, RoHS, REACh. - Applicable standards: IEC61869-1&2, IEC60044-1, BS3938, IS2705-1,2&3. - **Available variants:** - Primary current: other values. - Secondary current: 1A. - **Accessories:** - DIN rail mounting: MTCF-6274-DIN base to be ordered separately. - **Associated products:** - Meter or measurement unit: to create a 0.2S class measurement circuit, these current transformers must be paired with a measurement unit of the same 0.2S class, such as the MAE-1. - Compatibility: 0.2s class current toroid suitable for pairing with the MAE1 measurement unit of 0.2s precision. - DIN rail mounting with the accessory support rail DIN.
