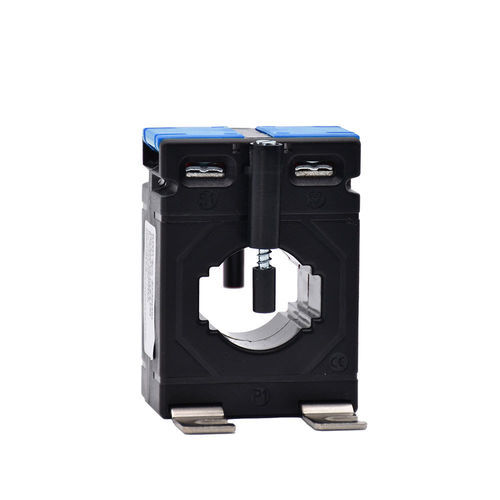

Current transformer MTCF-503030 series

dryfor energy metersDIN rail mount

MTCF current transformers combine accuracy with ease of integration: - Electrical: Primary current 300 or 400A depending on models. Secondary 5A Accuracy class 0.5. - Physical: Opening for cable Ø 26 mm or bar 10.5×30.5 or 15.5×25.5 mm. Housing dimensions: H70, W51, D32 mm. Surface mounting, on conductor or DIN rail with MTCF-50-DIN accessory to be ordered separately. Sealable terminal covers. - Accuracy: Class 0.5. - Standards and certifications: Compliances: CE, RoHS, REACh. Applicable standards: IEC61869-1&2, IEC60044-1, BS3938, IS2705-1,2&3. - Advantages: Compact size. Sealable terminal covers to prevent electrical risk or fraud. - Possible variants: Primary current: other values Secondary current: 1A. Accuracy classes: 0.2 – 0.2S – 0.5S. - Accessories: DIN rail mounting: MTCF-50-DIN base to be ordered separately. - Associated products: The associated meter or measuring center must have a 5A current input. Current transformer compatible with all types of electric meters or measuring centers with 5A input. DIN rail mounting with DIN rail support accessory. Characteristics / technical specifications: - Model: MTCF-503030 - Type: Closed current transformer - Primary current: 300A or 400A - Secondary current: 5A - Accuracy class: 0.5 - Opening: cable Ø26 mm or bar 10.5×30.5 mm or 15.5×25.5 mm - Housing dimensions: H70 x W51 x D32 mm - Mounting: surface, on conductor or DIN rail (optional accessory) - Compliances: CE, RoHS, REACh - Standards: IEC61869-1&2, IEC60044-1, BS3938, IS2705-1,2&3 - Sealable terminal covers
