Open-loop Hall effect current sensor MTCCO-21 series

panel-mountDCsplit-core

Presentation

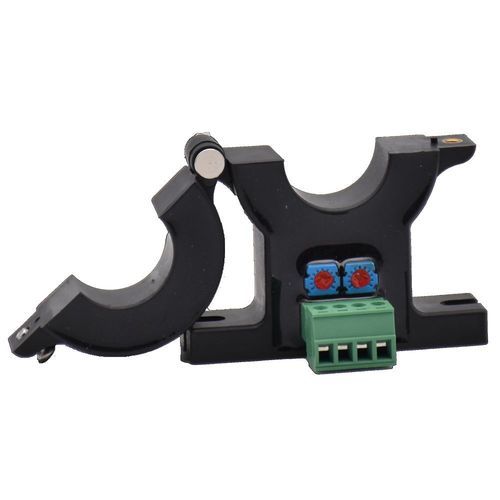

Open-loop Hall-effect current sensors with Ø21 mm opening for primary currents from 50 to 600 A (depending on model).

Description
The MTCCO series of Hall-effect current sensors combines measurement accuracy with straightforward integration for industrial and panel applications.

Features

• Electrical: primary current range 50–600 A depending on model; 12 V DC supply (input/output); accuracy class 1.
• Physical: opening for conductor Ø21 mm; housing dimensions H61 x L60 x P16 mm; surface mounting; removable screw terminal connection.
• Accuracy: class 1.
• Technical documentation: overview of the current transformer range available.

Advantages

• Integration: open-core design allows installation without disconnecting power conductors, simplifying retrofit and maintenance.

Standards and certifications

• Compliance: CE, RoHS.
• Applicable standards: IEC60950-1:2001, EN50178:1998, SJ20790-2000.

Related products

• MAP4-DC measurement unit (for DC current)
• MAP4-DC1, MAP4-DC9, MM4-DC12 (compatibility)
• AMP1-15-12 (recommended power supply depending on configuration)

Variants and ordering codes
Order code | Primary current | Stock product
MTCCO-21-50-12 | 50A | instock
MTCCO-21-100-12 | 100A | instock
MTCCO-21-200-12 | 200A | instock
MTCCO-21-300-12 | 300A | instock
MTCCO-21-400-12 | 400A | instock
MTCCO-21-600-12 | 600A | instock

Downloads

• Enerliz range presentation — pdf (0.59 MB)
• MTCCO datasheet — pdf (0.46 MB)

Technical specifications

• Model: MTCCO-21
• Primary current range: 50 A to 600 A depending on model (available variants: 50, 100, 200, 300, 400, 600 A)
• Opening: Ø21 mm
• Supply: 12 V DC (input/output)
• Accuracy: class 1
• Housing: H61 x L60 x P16 mm
• Mounting: surface mounting
• Connection: removable screw terminal
• Compliance: CE, RoHS
• Standards: IEC60950-1:2001, EN50178:1998, SJ20790-2000
