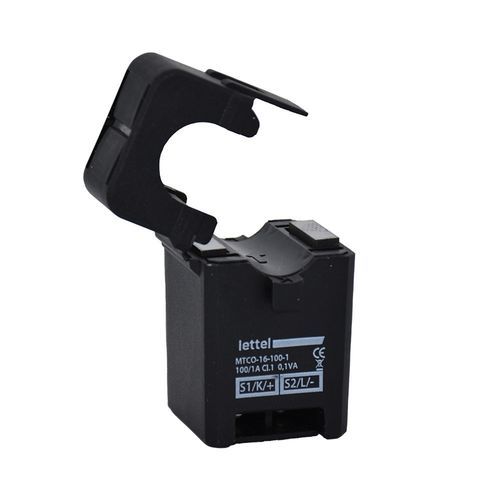

Current transformer MTCO-16 series

dryfor energy metersopening

The MTCO current transformers combine precision with ease of integration: - Electrical: Primary current from 50 to 100A depending on models. Secondary 1A Accuracy class 1. - Physical: Cable opening Ø16 mm. Housing dimensions: H55, L33.5, P38 mm. Mounting on conductor. Terminal covers. - Precision: Class 1. - Integration: Thanks to their split-core, the current transformers can be installed without disconnecting the phase to be measured. Possibility to attach a cable tie to secure the CT on the conductor. - Safety: Terminal covers to prevent electrical risks. - Standards and certifications: Compliances: CE, RoHS, Reach. Applicable standards: EN61869-1:2009, EN61689-2:2012. - Realizable variants: Primary current: other values. Secondary current: 1A, mV, mA. Accuracy class: 0.5%. Wire output: customizable length. - Compatibility: Current transformer compatible with all types of electrical meters or measurement centers with 1A input. Characteristics / Technical specifications: - Model: MTCO-16 - Primary current: 50A or 100A depending on the variant - Secondary current: 1A - Accuracy class: 1 - Cable opening: Ø16 mm - Housing dimensions: H55 x L33.5 x P38 mm - Mounting: on conductor - Compliances: CE, RoHS, Reach - Standards: EN61869-1:2009, EN61689-2:2012
