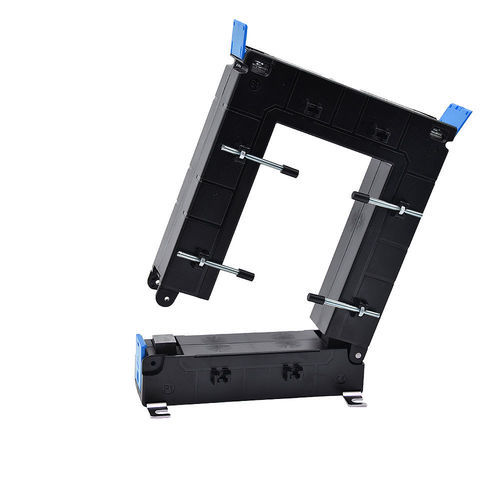

Current transformer MTCO-12585 series

dryfor energy metersopening

The MTCO current transformers combine precision with ease of integration: - Electrical: Primary current from 1500 to 2500A depending on the model. Secondary 5A Accuracy class 0.5. - Physical: Opening for bar 125×85 mm. Case dimensions: H198, W155, D54 mm. Mounting on conductor. Opening by push button, secured by locking screw. Sealable terminal covers. - Accuracy: Class 0.5. - Technical documents: – Current transformers - Advantages: Integration: Thanks to their opening core, installation is possible without disconnecting power cables. Safety: Terminal covers to avoid any electrical risk. Opening by push button, with locking screw to prevent any unintentional opening of the CT. - Standards and certifications: Conformities: CE, RoHS, REACh. Applicable standards: IEC61869-1&2, IEC60044-1, BS 3938, IS 2705-1,2&3. - Available variants: Cases: Other case sizes. Primary current: Other values. Secondary current: 1A, mV, mA. - Associated products: Meter or measuring unit: The associated meter or measuring unit must have a 5A current input. Compatibility: Current sensor compatible with any type of electric meters or measuring units with 5A input. Variants and order codes: Order code | Type of CT | Primary current | Stocked product --- | --- | --- | --- MTCO-12585-1500-5 | Opening | 1500A | In stock MTCO-12585-2000-5 | Opening | 2000A | In stock MTCO-12585-2500-5 | Opening | 2500A | In stock - Technical specifications: - Primary current: 1500 to 2500A (depending on model) - Secondary current: 5A - Accuracy class: 0.5 - Opening for bar: 125×85 mm - Case dimensions: H198, W155, D54 mm - Mounting: On conductor - Opening: Push button with locking screw - Sealable terminal covers - Conformities: CE, RoHS, REACh - Applicable standards: IEC61869-1&2, IEC60044-1, BS 3938, IS 2705-1,2&3
