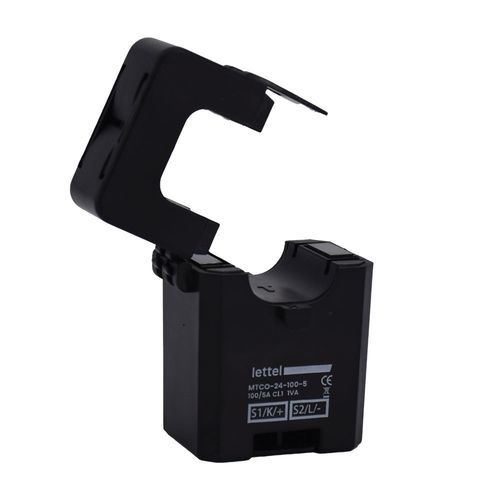

Current transformer MTCO-24

powerdryopening

Description
Split-core current transformers MTCO combine accurate measurement capability with easy on-site integration. Designed for metering and monitoring applications, the MTCO series features a split (open) core allowing installation without disconnecting the power conductor.

General features

• Primary current range: 100 A to 300 A depending on model
• Secondary current: 5 A
• Accuracy: class 1
• Opening accommodates conductor up to Ø 24 mm
• Enclosure dimensions: H 75 × W 53 × D 41.4 mm
• Mounting onto conductor using cable tie

Benefits

• Installation: split-core design enables retrofitting without cutting the power cable
• Fixing: can be secured to the conductor with a cable tie for stable positioning
• Safety: terminal covers prevent accidental contact with connection points

Standards and certifications

• Compliances: CE, RoHS, REACH
• Applicable standards: EN61869-1:2009, EN61689-2:2012

Available variants

• Standard primary currents available: 100 A, 200 A, 300 A
• Other primary currents available on request
• Secondary outputs / options: 5 A (standard), other outputs on request (1 A, mA/mV outputs) and custom cable lengths
• Custom accuracy classes available (e.g. 0.5 %)

Related products

• Meters and energy measurement units accepting 5 A input
• Communication modules and gateways for integration of measurement data
• Rogowski coils and mounting accessories

Variants / order codes (extract)
Code | CT type | Primary current | Stock status
MTCO-24-100-5 | Split-core | 100 A | in stock
MTCO-24-200-5 | Split-core | 200 A | in stock
MTCO-24-300-5 | Split-core | 300 A | in stock

Technical details / specifications

• Primary range: 100 A, 200 A, 300 A (depending on reference)
• Secondary current: 5 A (standard)
• Accuracy: class 1 (standard)
• Core opening (Ø): 24 mm
• Dimensions: H 75 mm × W 53 mm × D 41.4 mm
• Mounting: split core + cable tie
• Safety: terminal covers
• Compliances: CE, RoHS, REACH
• Standards: EN61869-1:2009, EN61689-2:2012
• Available technical documents: MTCO range overview, general catalogue, product datasheet (PDF)
