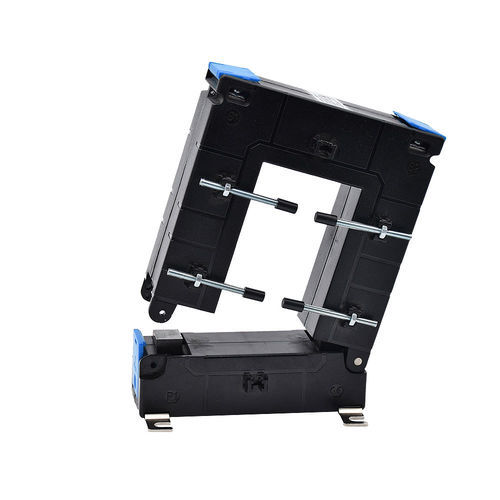

Current transformer MTCO-8555 series

dryfor energy metersopening

The MTCO current transformers combine precision with ease of integration: - Electrical: - Primary current from 500 to 1000A depending on the model. - Secondary 5A - Accuracy class 0.5. - Physical: - Opening for busbar 85×55 mm. - Enclosure dimensions: H158, W125, D54 mm. - Mounting on conductor. - Opening by push button, secured by locking screw. - Sealable terminal covers. - Accuracy: - Class 0.5. - Primary current: - Other values available. - Technical documents: - Current transformers - Integration: - Thanks to their opening core, installation is possible without disconnecting power cables. - Safety: - Terminal covers to prevent any electrical risk. - Opening by push button, with locking screw to prevent any unintentional opening of the CT. - Compliance: - CE, RoHS, REACh. - Applicable standards: - IEC61869-1&2, IEC60044-1, BS 3938, IS 2705-1,2&3. - Available variants: - Other enclosure sizes. - Secondary current: 1A, mV, mA - Associated products: - The associated meter or measurement unit must have a 5A current input. - Compatible with any type of electric meters or measurement units with 5A input. Variants and order codes: - Order code: MTCO-8555-500-5, Type: Opening, Primary current: 500A, Stocked product: In stock - Order code: MTCO-8555-600-5, Type: Opening, Primary current: 600A, Stocked product: In stock - Order code: MTCO-8555-800-5, Type: Opening, Primary current: 800A, Stocked product: In stock - Order code: MTCO-8555-1000-5, Type: Opening, Primary current: 1000A, Stocked product: In stock Technical specifications: - Primary current: 500 to 1000A (depending on model) - Secondary current: 5A - Accuracy class: 0.5 - Opening for busbar: 85×55 mm - Enclosure dimensions: H158, W125, D54 mm - Mounting: on conductor - Opening: push button with locking screw - Sealable terminal covers - Compliance: CE, RoHS, REACh - Standards: IEC61869-1&2, IEC60044-1, BS 3938, IS 2705-1,2&3
