Transformer current transducer IVY-CS-01-60ADC
busbar-mountedDChigh-accuracy

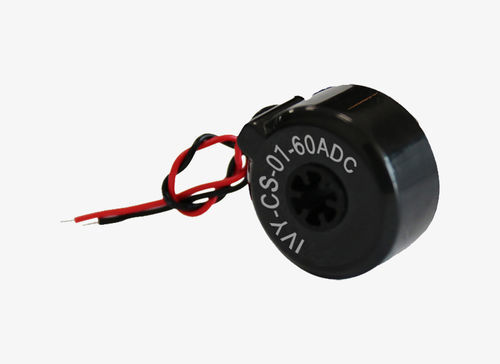

Transformer current transducer - IVY-CS-01-60ADC - IVY METERING - busbar-mounted / DC / high-accuracy
Transformer current transducer - IVY-CS-01-60ADC - IVY METERING - busbar-mounted / DC / high-accuracy
Transformer current transducer - IVY-CS-01-60ADC - IVY METERING - busbar-mounted / DC / high-accuracy - image - 2
Add to favorites
Compare this product
Go to the IVY METERING website for more information

Characteristics

Technology
transformer
Mounting
busbar-mounted
Electrical characteristics
DC
Other characteristics
high-accuracy, miniature, compact, precision
Output
current output
Primary current

Max.: 60 A

Min.: 5 A

Description

Product overview
  • Current range: 5(60) A — secondary reference: 2 mA
  • Accuracy class: 0.1
  • Coil turns: 2500 turns
  • Rated burden: 20 Ω
  • Dielectric strength: 4 kV
  • Rated frequency: 50–60 Hz
  • High-precision linear output
  • DC immunity option available
  • Designed for integration on various busbar sizes and panel layouts
  • Applications: energy metering, circuit protection, motor control equipment


Technical specifications
  • Model: IVY-CS-01-60ADC
  • Rated current range: 5(60) A
  • Secondary output reference: 2 mA
  • Accuracy class: 0.1
  • Coil turns: 2500
  • Rated burden: 20 Ω
  • Dielectric strength (insulation): 4 kV
  • Rated frequency: 50–60 Hz
  • Feature: high-precision linear output
  • Option: DC immunity available
  • Mounting: supports various busbar integrations


Applications and installation
  • Energy meters and submetering systems
  • Circuit protection and monitoring
  • Motor control and drive systems
  • Panel and busbar mounting; consult supplier for busbar dimensions and clearances


Ordering and options
  • Variants with DC immunity or specific busbar adaptors available on request
  • Provide application details (busbar size, mounting orientation, measurement point) for compatibility checks and lead-time estimate
