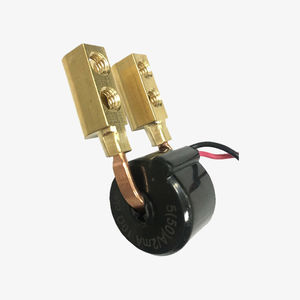

Current transformer IVY-CT-OC-34-16

powerisolationmeasurement

The split core current transformer (CT) uses high-quality ferrite as the magnetic conductive material, which has the characteristics of opening and closing, small magnetic circuit loss, and high magnetic field density. Small size, stable performance, suitable for various complex environments. In addition, it can be quickly assembled and disassembled without power off, making work more efficient. It is used for measurement and monitoring. Product Feature Sealed, suitable for outdoor use Open-ended design, no need to cut off power, faster assembly and disassembly, and more efficient work Hinge connection, the number of opening and closing is guaranteed The contact surface of the magnetic core adopts mirror processing to make the CT contact surface closer Product Parameter Rated output current 0.05mA~40mA Working temperature -40℃~80℃ Transformation ratio 5000 isolation withstand voltage ＞3kVAC Accuracy class 1.0 Linearity ±0.2% Load resistance ≤5Ω phase difference 35±7’ Internal resistance ≤580Ω series connection hole ≤φ17mm
