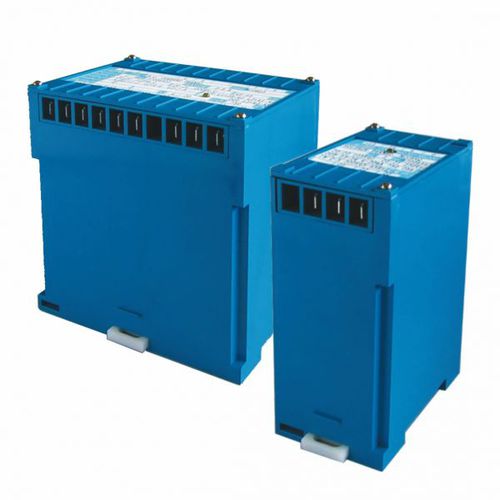

DIN rail current transducer MROA series

AC

• TRMS AC Current Transducer 1 Input / 1 Output • TRMS AC Current Transducer duplicator 1 input / 2 outputs • TRMS AC Current Transducer triplicator 1 input / 3 outputs • TRMS AC Current Transducer - 2 inputs / 2 outputs • 3Phase TRMS AC Current Transducer 3 inputs / 3 outputs • 3Phase TRMS AC Current Transducer Inputs Average/Sum 3 inputs / 1 output • accuracy class 0,5* • input range 0...120% In • response time <200msec • residual ripple <1%p.p. • continuous overload 2 ln • short-time overload 20 ln (300msec) • reference frequency 50-60 Hz • current circuits consumption <0,5VA • operating temperature –10...0...+45...+50°C • storage temperature –30...+70°C • self estinguishing thermoplastic material UL 94-V0 • galvanic insulation alim./ingr./uscite - p.supply/in/out • overvoltage category CAT III 300V, CAT II 600V, P.D.2 • according to EN 60688
