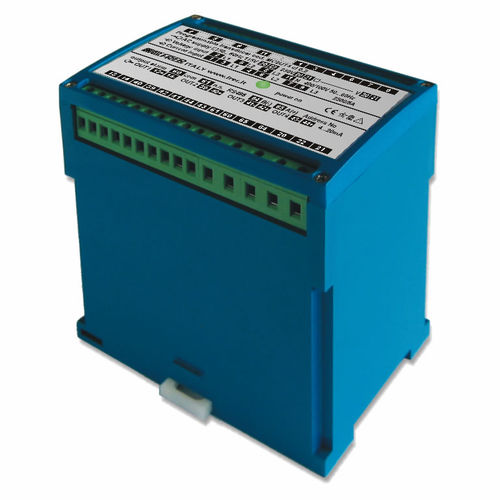

DIN rail power transducer MCO series

three-phasesingle-phaseactive power

Single-phase Active Power Transducer Single-phase Reactive Power Transducer 3Phase, 3 wires, balanced load Active Power Transducer 3Phase, 3 wires, balanced load Reactive Power Transducer 3Phase, 4 wires, balanced load Active Power Transducer 3Phase, 4 wires, balanced load Reactive Power Transducer 3Phase, 3 wires, unbalanced load Active Power Transducer 3Phase, 3 wires, unbalanced load Reactive Power Transducer 3Phase, 4 wires, unbalanced load Active Power Transducer 3Phase, 4 wires, unbalanced load Reactive Power Transducer • accuracy class 0,5* • input range 20...120% Un , In • (versione autoalimentata) ( self supplied version) 90...110% Un , 20...120% In • response time <200msec • residual ripple <0,5%p.p. • continuous overload 2 In; 1,2 Un • short-time overload 20 In; 2 Un • reference frequency 45÷65 Hz • current circuits consumption <0,5VA • voltage circuits consumption <0,5VA • ( self supplied version) <6,5VA • operating temperature –10...0...+45...+50°C • storage temperature –30...+70°C • self estinguishing thermoplastic material UL 94-V0 • galvanic insulation alim./ingr./uscite - p.supply/in/out ** • overvoltage category CAT III 300V, CAT II 600V P.D. 2 • according to EN 60688
