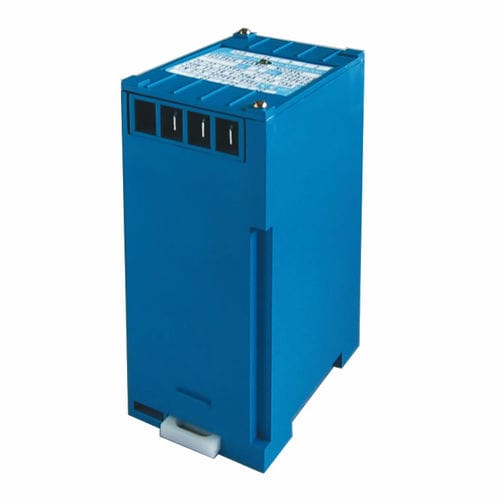

Speed converter MCOTP1

DIN rail

RPM Transducer Input from Proximity NAMUR, PNP, NPN or from Alternator or Dynamo • accuracy class 0,5 • input range 5...120% Fn; Un • response time <300msec • residual ripple <1%p.p. • continuous overload 1,2 Un • short-time overload 2 Un (1sec) • bidirectional (on request) MCOTP1DYN... • voltage circuits consumption < 0,5VA (MCOTP1ALT...) < 100µA (MCOTP1DYN...) • operating temperature –10...0...+45...+50°C • storage temperature –30...+70°C • self estinguishing thermoplastic material UL 94-V0 • galvanic insulation completo/full • overvoltage category CAT III 300V, CAT II 600V P.D. 2 • according to EN 60688
