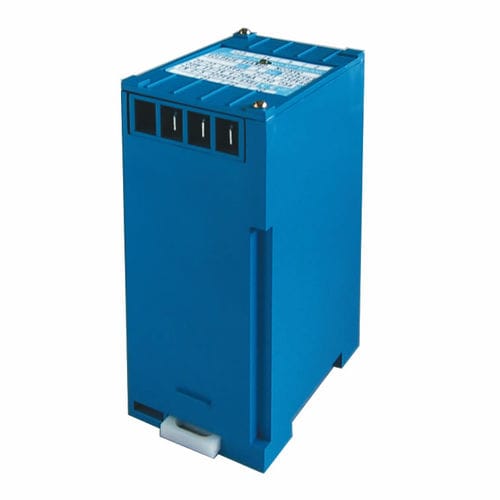

Pt100 temperature transducer MCOMC series

DIN rail2-wire3-wire

Linearised Temperature Transducer - input from PT100 2wires Linearised Temperature Transducer - input from PT100 3wires • accuracy class 1 • response time <200msec • sensor type PT100 (IEC 751, DIN 43760) • sensor current 1mA • line resistance compensation manual by trimmer automatic 20Ω (MCOMC2) 5Ω (MCOMC3) • minimum measuring range Δ t 60°C • sensor fault (open circuit) Uscita a fondo scala • Full-scale output • operating temperature –10...0...+45...+50°C • storage temperature –30...+70°C • self estinguishing thermoplastic material UL 94-V0 • galvanic insulation alimentazione - power supply • overvoltage category CAT III 300V, CAT II 600V P.D. 2 • according to EN 60688
