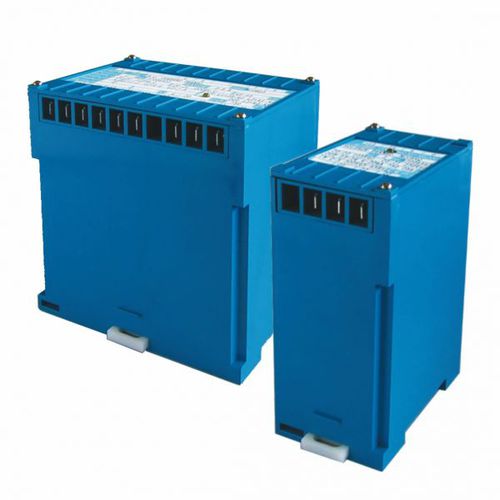

AC voltage transducer MROVS series

DIN rail

• TRMS AC Voltage Transducer 1 input / 1 output • TRMS AC Voltage Transducer duplicator 1 input / 2 outputs • TRMS AC Voltage Transducer triplicator 1 input / 3 outputs 1 input / 3 outputs • TRMS AC Voltage Transducer - 2 inputs / 2 outputs • TRMS AC Voltage Transducer - 3 inputs / 3 outputs • 3Phase TRMS AC Voltage Transducer phase-phase 3 inputs / 3 outputs • 3Phase TRMS AC Voltage Transducer phase-neutral 3 inputs / 3 outputs • 3 Inputs TRMS AC Voltage Transducer for inputs average/sum AC TRMS Voltage transducer with output proportional to the sum/average of 3 independent inputs 3 Inputs / 1 Output • 3Phase TRMS AC Voltage Transducer phase-phase for Inputs average/sum TRMS AC Voltage Transducer phase-phase for average/sun value of the inputs 3 inputs / 3 outputs • 3Phase TRMS AC Voltage Transducer phase-neutral for Inputs average/sum TRMS AC Voltage Transducer phase-neutral for average/sum value of the inputs 3 inputs / 3 outputs • accuracy class 0,5* • input range 0...120% Un • response time <200msec • residual ripple <1%p.p. • continuous overload 1,2 Un • short-time overload 2 Un (300msec) • reference frequency 50-60 Hz • voltage circuits consumption <0,5VA • operating temperature –10...0...+45...+50°C • storage temperature –30...+70°C • self estinguishing thermoplastic material UL 94-V0 • galvanic insulation alim./ingr./uscite - p.supply/in/out • overvoltage category CAT III 300V, CAT II 600V P.D. 2 • according to EN 60688
