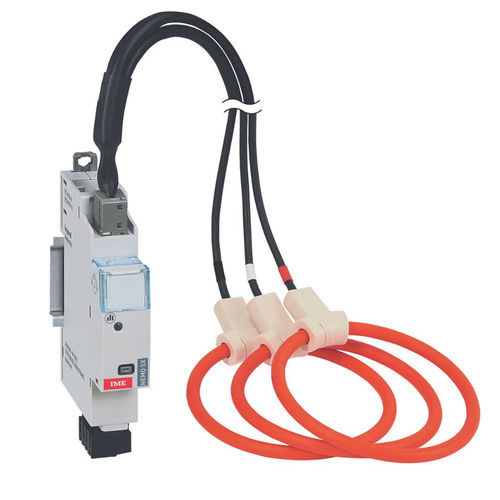

Rogowski coil current transducer SXMR02

busbar-mountedpanel-mountmonitoring

Overview
NEMO SX is a compact measurement module for electrical current monitoring. It provides direct connection with open, flexible Rogowski coils and allows the passage of prong-type supply busbars on the upper side. Supplied with three open flexible Rogowski coils and fixing supports for busbars. Designed for integration into distribution panels and monitoring systems.

Applications

• Energy monitoring and metering in industrial distribution boards
• Retrofit installation on existing busbars
• Protective relay and power quality systems
• Panel-level measurement for preventive maintenance

Technical features (table)

• Brand: IME
• Reference standard: IEC/EN 61557-12
• Input current: up to 630 A
• Modules: 1
• Protection class: IP20
• Accuracy class: 0.5

Commercial data (table)

• Minimum quantity: 1
• Sales unit: 1 piece
• EAN code: 8032826514753

Accessories / Supplied

• Opened, flexible Rogowski coils (3)
• Fixing supports for busbars
• Allows passage of prong-type supply busbars (upper side)

Technical specifications

• Rogowski coils: 3 flexible coils (up to 630 A)
• Consumption: 0.418 W - 34.8 mA (12 V DC)
• Accuracy class: 0.5
• Protection: IP20
• Reference: IEC/EN 61557-12
• Brand: IME
