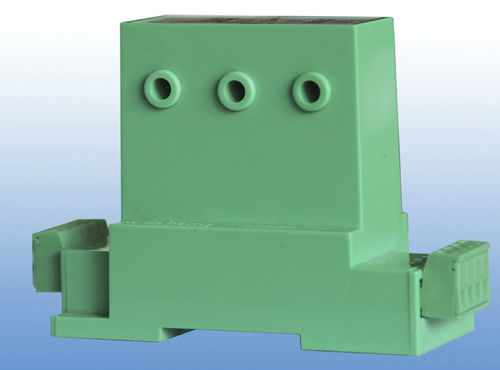

DIN rail current transducer CTV300
three-phaseACpower

DIN rail current transducer
DIN rail current transducer
Add to favorites
Compare this product


Characteristics

Mounting
DIN rail
Electrical characteristics
AC, three-phase
Other characteristics
precision, power
Current

Min.: 0 A

Max.: 10 A

Description

The CTV300 is special for 3-phase AC power current A,B,C Phase measurement. It is an industrial class, high reliability, low-power consumption, high stability and high precision analog transducer. The CTV300 is used widely as a current measure of Base Transceiver Station, diesel generator rooms, engine room, transformer substations, telecommunication equipment rooms, power supply systems and so on. The CTV300 with fire retardant shell, standard 35mm DIN rail mounting makes it easy to install in fields. Specifications : Please inform us the correct parameters from below specifications before you order this item. Rated Power Input Default:12VDC, Optional: 5VDC,15VDC, 24VDC; Input Current Default:0~10A, Optional: 0~1A, 0~5A; Output Voltage 0~5V Precision Class Default:0.5, Optional: 0.2; Isolation Voltage >2500VDC; Installation Type standard 35mm DIN rail Relative Humidity 0~98%RH.; Operation Temperature -10~55℃; Dimension 96X76X38mm(HxWxD) Net Weight 140g.
