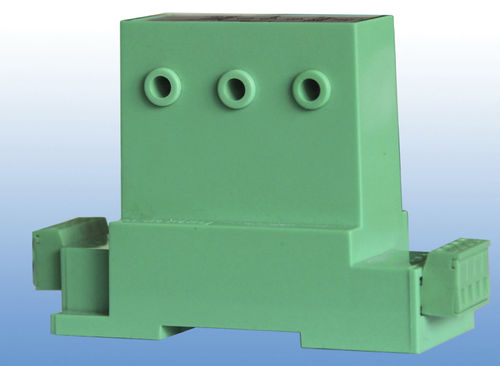

Three-phase voltage transducer VTV300
ACDIN rail

three-phase voltage transducer
three-phase voltage transducer
Add to favorites
Compare this product


Electrical characteristics
AC, three-phase
Other characteristics
DIN rail

Min.: 0 V

Max.: 500 V


The VTV300 is special for 3-phase AC power voltage A,B,C Phase measurement. It is an industrial class, high reliability, low-power consumption, high stability and high precision analog transducer. The VTV300 is used widely as a voltage measure of Base Transceiver Station, diesel generator rooms, engine room, transformer substations, telecommunication equipment rooms, power supply systems and so on. The VTV300 with fire retardant shell, standard 35mm DIN rail mounting makes it easy to install in fields. Specifications : Please inform us the correct parameters from below specifications before you order this item. Rated Power Input Default:12VDC, Optional: 5VDC,15VDC, 24VDC; Input Voltage Default:0~500VAC, Optional: 0~200VAC; Output Voltage 0~5V Precision Class Default:0.5%, Optional: 0.2%; Isolation Voltage >2500VDC; Installation Type standard 35mm DIN rail Relative Humidity 0~98%RH.; Operation Temperature -10~55℃; Dimension 96X76X38mm(HxWxD) Net Weight 140g.
