Float level sensor WLV102
for fuelhigh-precision

float level sensor
float level sensor
Add to favorites
Compare this product


for fuel
Other characteristics
Level range

Min.: 100 mm (3.94 in)

Max.: 2,000 mm (78.74 in)

Process temperature

Min.: -40 °C (-40 °F)

Max.: 85 °C (185 °F)

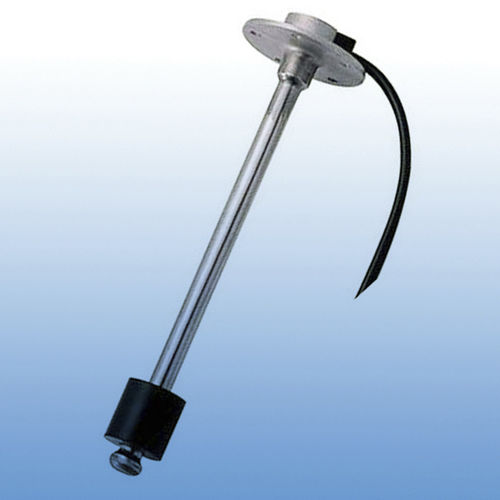

The Diesel Oil Fuel Water Tank Level Transducer WLV102 is special for monitoring and measuring diesel oil, diesel fuel, and water level in vehicles, power generator, trucks or other tanks, simple in structure and installation and maintenance. with protection sleeve filter. The length can be from 100mm to 2000mm according to requirements in field. When the liquid level change, it will caused the float ball up and down, then creates a correspond linear electrical signal output of 0~5V DC to data acquisition module or controller or others. The sensor part can be immersed into the liquid and the transmitter can be fixed by flange mounted or Bracket, easily to install and use. Features : Ø Stability , high precision; Ø Directly immerse into the measured medium, very easy to install and use; Ø Solid-state structure, no moving parts, high reliability , long life from the water; Ø Standard 0-5V DC output for RTU, PLC and acquisition equipments; Ø Wide range for measurements from 100mm~2000mm. Ø With power reverse polarity protection and overload current limit protection .


No catalogs are available for this product.
