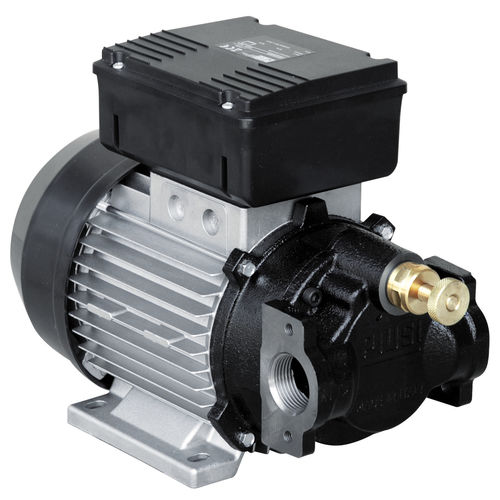

Rotary vane pump VISCOMATfor lubricantselectricself-priming
Add to favorites
Compare this product
Characteristics
- Technology
- rotary vane
- Fluid
- for lubricants
- Operation
- electric
- Priming
- self-priming
- Domain
- industrial
- Flow
25 l/min, 50 l/min
(6.6043 us gal/min, 13.2086 us gal/min)- Pressure
Min.: 0 bar
(0 psi)Max.: 6 bar
(87.023 psi)- Head
Min.: 0 m
(0'00" )Max.: 2.5 m
(8'02" )
Description
Lubricant pump Viscomat 70 and Viscomat 90
- rotary vane pump, thus high delivery volume flow at high pressure
- die cast aluminum pump body
- sintered steel rotor with resin vanes
- seal on the rotary shaft with access from the pump side
- bypass line integrated into the pump body
- suitable for oils up to 500 cSt, corresponding to approx. SAE 90 at 20 °C
- also suitable for vegetable oils e.g. cold pressed rape seed oil
