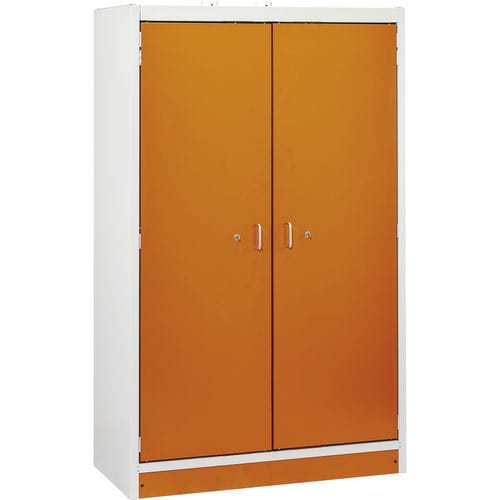

Fireproof cabinet PROline 12/20 F90

securityfloor-mounteddouble door

Secure cabinet PROline 12/20 type 90, 3 x spill tray shelves, 1 x spill tray base with perforated plate grating, External dimensions: 120 x 60 x 195 cm, Internal dimensions: 105 x 49 x 166 cm, Weight: 450 kg, Collection volume: 33 L Complies with the newest version of DIN EN 14470-1 • - 90 minutes fire resistance • - for containers up to 30 litres / 60 litres (order no. 11975) • - safe 2-point locking for optimal access protection • - locking mechanism activates when closing the doors • - self-closing doors in the event of a fire • - door holding in an open condition as standard • - extra safety: load certification for fan centre of gravity on the top of the cabinet • - height-adjustable spill tray shelf, load capacity 75 kg, grid dimension 32 mm • - for connection to mechanical ventilation, diameter of ventilation opening DN75 • - forkliftable, height-adjustable feet, removable base trim • - earthing point on the outside of the cabinet to avoid ignition hazards due to electrostatic charging • - optional: cable duct for installation of measuring equipment, for instance • - cabinet body in grey, doors in RAL 2008/orange (other colours on request)
