Asynchronous motor E3AB3006137B30D41100
three-phase400 V690 V

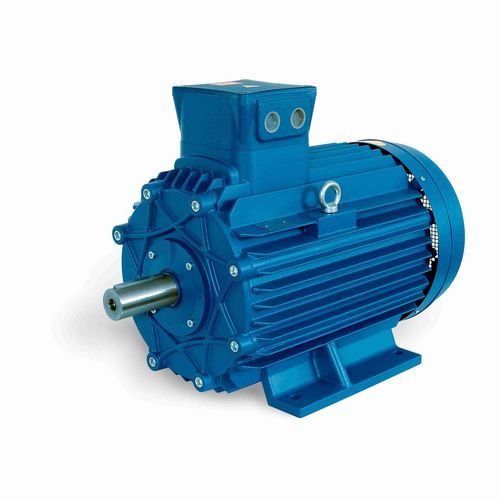

Asynchronous motor - E3AB3006137B30D41100 - Cemp S.r.l. - three-phase / 400 V / 690 V
Asynchronous motor - E3AB3006137B30D41100 - Cemp S.r.l. - three-phase / 400 V / 690 V
Add to favorites
Compare this product

Characteristics

Type
asynchronous, three-phase
Voltage
400 V, 690 V
Configuration
squirrel cage, cast iron
Protection class
IP55, IP66, flameproof, for hazardous areas
Efficiency classes
IE3
Number of poles
6-pole
Applications
for pump, industrial, for the mining industry, for marine applications, for the oil and gas industry
Other characteristics
low-voltage
Power

5.5 kW
(7.48 hp)

Intensity

11.8 A

Rotational speed

973 rpm
(6,113.5393 rad.min-1)

Operating temperature

Min.: -20 °C
(-4 °F)

Max.: 80 °C
(176 °F)

Description

• According to standards: IEC 60034 • Insulation: Class F with class B temperature rise • Mounting: B3 - Available B5, B14, B34, B35, V1 on request • Fan: Bi-directional fan • Drive Suitability: Suitable for DOL and VFD • Thermistors: PTC included as standard for VFD applications • Paint: RAL 5010 standard. Special painting available on request
