Asynchronous motor E3TI3002223B50D41100
AC400 V690 V

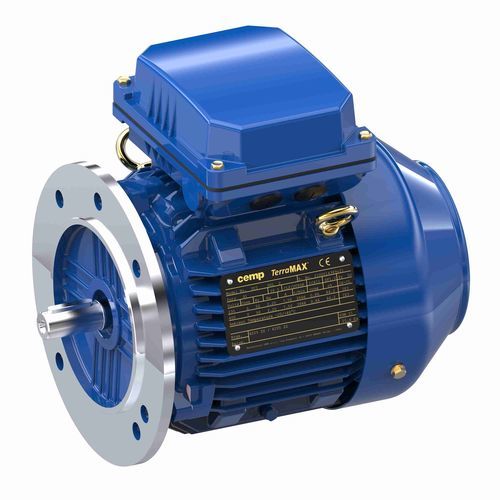

Asynchronous motor - E3TI3002223B50D41100 - Cemp S.r.l. - AC / 400 V / 690 V
Asynchronous motor - E3TI3002223B50D41100 - Cemp S.r.l. - AC / 400 V / 690 V
Add to favorites
Compare this product

Characteristics

Type
asynchronous, AC
Voltage
400 V, 690 V
Configuration
squirrel cage, cast iron
Protection class
IP55, IP66, rugged
Efficiency classes
IE3, IE4
Number of poles
2-pole
Other characteristics
low-voltage
Power

45 kW
(61.18 hp)

Intensity

78.7 A

Rotational speed

2,966 rpm
(18,635.9276 rad.min-1)

Operating temperature

Max.: 80 °C
(176 °F)

Min.: -20 °C
(-4 °F)

Description

TCI series motors, built on the global low voltage TerraMAX motor platform, are IE3 & IE4 efficiency totally enclosed fan cooled motors suitable for general industry applications. The TCI series motors inherit the premium features of state of the art TerraMAX motor platform, while delivering energy savings. The rugged construction of the TCI series motors meets the industry requirement for all tough and demanding applications. The complete range is manufactured in our Italian plant in Senago, Milan, Italy. • According to standards: IEC 60034 • Insulation: Class F with class B temperature rise • Mounting: B5 - Available B3, B35, V1 on request • Fan: Bi-directional fan • Drive Suitability: Suitable for variable torque duty (10:1) • Thermistors: PTC included as standard • Paint: RAL 5010 standard. Special painting available on request

Catalogs

No catalogs are available for this product.

See all of Cemp S.r.l.‘s catalogs
