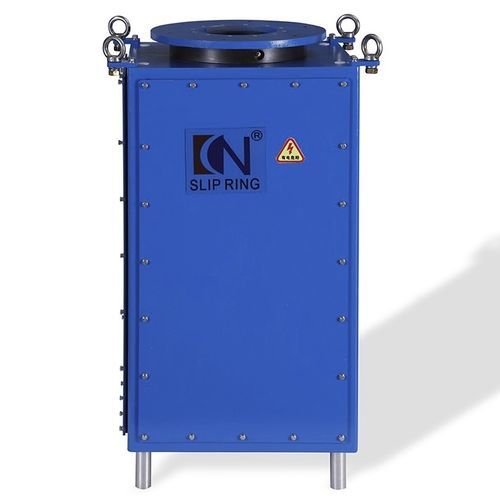

Industrial slip ring BHCN-C-07P-37S carbon brushhigh-current
Add to favorites
Compare this product
Characteristics
- Applications
- industrial
- Other characteristics
- carbon brush, high-current
- Voltage
500 V
- Primary current
60 A, 600 A
- Rotational speed
Max.: 15 rpm
(94 rad.min-1)Min.: 0 rpm
(0 rad.min-1)- Number of channels
44 unit
Description
CENO Big current slip ring adopts carbon brush design which can pass high current power on each carbon brush. Currently, the max current ampere up to 2000Amp. We apply advanced technology on effective and guaranteed testing to ensure no spark arc risk.
Dielectric strength - ≥2500VAC@50Hz
Isolation resistance - ≥500MΩ@500VDC
Resistance fluctuation - ≦10mΩ
Contact material - Copper graphite, precious metal
Working humidity - ＜100%RH
Operating temperature - -20℃~+60℃
