PLC-controlled drilling machine

vertical

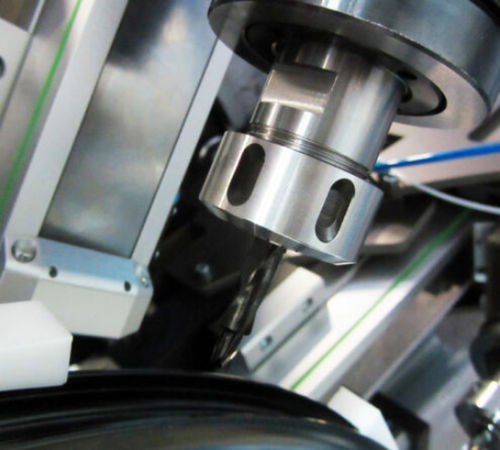

This machine is vertical and equipped with an automatic rim loading / unloading system linked to a rim joint indexing station. Equipped with 5 high speed drilling heads (up to 22 000 rpm) angularly and radially adjustable, particularly suitable for any drilling configuration. Rim holder plate driven by torque motor ensuring a very accurate positioning and drilling The machine and the drilling adjustments are PLC driven Closed loop drilling tool lubrication with filter. Technical specifications: · Range: 16 to 29“ · Production capacity: 200 rims /hour · Working air pressure: 6 bar or 90 PSI · Air consumption: 150 L/min · Electrical connection: As required by customer · Power consumption: 12 kW · Dimensions: 2.50 x 3.80 x 2.40 m (W x D x H) · Safety mark: CE
