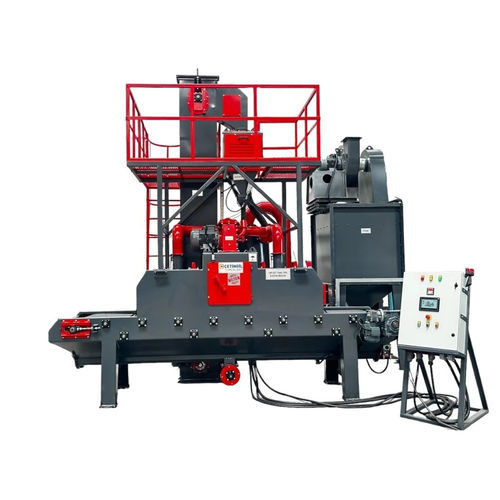

Automatic sandblasting machine CMK series

pressurefor surface treatment

Marble Sandblasting Machine or Natural Stone Sandblasting Machine called sandblasting machine can sand all kinds of natural stone. Production is made depending on the width of the stone. While the turbines blasting that are 3000 rpm, dust is absorbed by the radial fan or cartridge filter that has self-cleaning (Jet-Pulse) Marble Sandblasting Machine consists of the main body, conveyor belt, elevator, separator, cyclone, and filter units. Machine operation: Cutted and dry natural stone/marble pieces are placed on the conveyor belt, and belt movement adjustment is made. The walking speed of the belt is adjusted (0,5-2m / min). Sandblasting is performed with granules sent from the turbine at a speed of 3000 rpm. The granules poured onto the machine base are conveyed to the elevator by means of a helical extractor. It is sent to the separator with the bucket belt system. Dust separation is made in the separator. The granules send to the turbine and the dust send to the filter too The cabin is made of ST-37 sheet metal and the sections directly seen by the turbines in the blasting zone and the parts of the dust cover cabins close to the blasting zone are supported by wear-resistant Brinell or Manganese armor, while the other areas are supported by Hardox armor. (Coating with full manganese armor is optional) The armor cladding is screw-in design for future wear-based replacements. It can be easily changed by authorized personnel in your company. The inside of the gaiters cabins are covered with 5mm rubber sheet to prevent them from being exposed to abrasion due to the sandblasting process.
