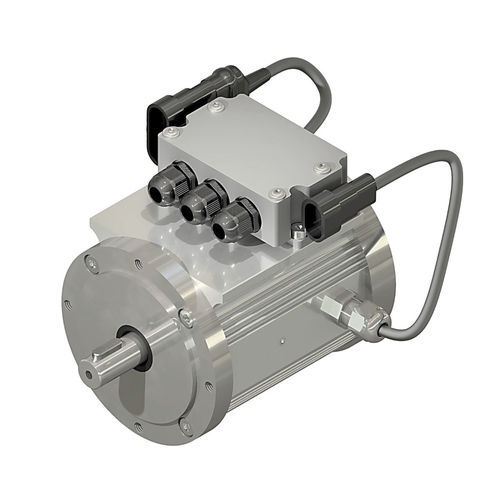

Synchronous motor BD series three-phasepermanent magnetaluminium
Add to favorites
Compare this product
Characteristics
- Type
- synchronous, three-phase
- Configuration
- permanent magnet, aluminium
- Protection class
- IP65, IP67
- Applications
- traction
- Power
Min.: 0.4 kW
(0.54 hp)Max.: 19 kW
(25.83 hp)- Torque
Min.: 3 Nm
(2.212686 ft.lb)Max.: 293 Nm
(216.10571 ft.lb)- Rotational speed
Min.: 4,500 rpm
(28,274.3339 rad.min-1)Max.: 6,000 rpm
(37,699.1118 rad.min-1)
Description
After more than ten years of experience, PMAC motors are now in their third generation; they stand out thanks to their excellent power-weight ratio and their very high levels of efficiency, while maintaining the unwavering flexibility typical of CFR's products. PMAC synchronous surface permanent magnet SPM or internal permanent magnet IPM motors are optimised for intermittent or continuous duty and dedicated to traction, steering or hydraulic systems. With ingress protection of up to IP67, they are designed for low and high voltage.
•BD: three-phase brushless synchronous motor with wound tooth winding and extruded aluminum casing
