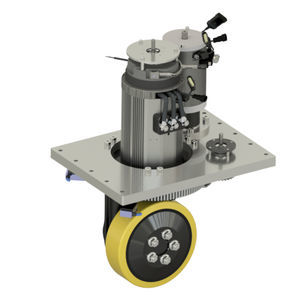

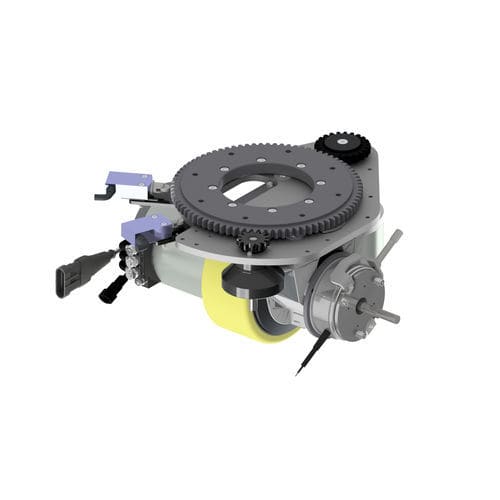

IP65 drive wheel MRT series
Add to favorites
Compare this product
Characteristics
- Protection level
- IP65
- Torque
Min.: 90 Nm
(66.38 ft.lb)Max.: 2,100 Nm
(1,548.88 ft.lb)- Power
Min.: 200 W
(0.27 hp)Max.: 6,000 W
(8.16 hp)- Load
Min.: 500 kg
(1,102.3 lb)Max.: 3,200 kg
(7,054.8 lb)- Speed range
Min.: 5.5 km/h
(3.42 mph)Max.: 9 km/h
(5.59 mph)- Diameter
Min.: 154 mm
(6.06 in)Max.: 410 mm
(16.14 in)
Description
Our multi-directional horizontal electric drive wheels are an ideal product for a multi-directional powertrain requiring reduced vertical space, and can be supplied with or without electric steering. Available with PMAC/AC/DC motors, optimised for intermittent or continuous duty use, and offering ingress protection of up to IP65. Designed for low and high voltage, they are dedicated exclusively to indoor traction.
