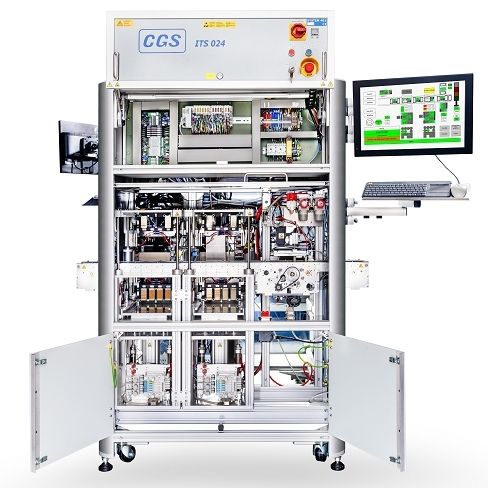

Electric test station ITS

computer-controlledin-line

The CGS Inline-Test-Stations operate with the double stroke-probe-principle, which is covered by a European patent of CGS GmbH. Main components Test-specific contacting elements (upper and lower cassettes) which are inserted into the insertion device of the test head Clamping device per cassette for fastening (pneumatic clamping set) 2-4 support cylinders depending on the type for lifting the device under test (DUT), as well as for pneumatic suspension Lifting cylinders for the operation of the cassettes to contact the DUT one section of conveyor (inline module belt IMB) The patented ITS-N5 to N7 probe systems are available with a VPC or Pylon interface and accommodate the corresponding DUT-specific upper and lower cassettes. The ITS-N4 probe system is only available with a pylon interface.
