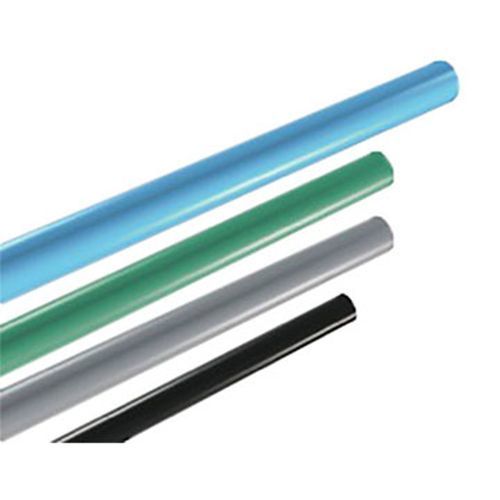

Pneumatic tube assembly

industrialfor food applicationsaluminium

Introduction
Solid aluminium compressed air piping and fittings designed for industrial delivery of air, nitrogen, vacuum and inert gases. The Quick-Lock / Big-Lock system provides strength comparable to stainless or carbon steel while offering significant weight reduction and ease of installation.

Performance and compliance
The NeXt Generation rating is 300 PSI and 300 °F across all fittings. The system meets food-grade requirements and is covered by a LIFETIME warranty for all piping and fittings in the series. Produced in USA facilities with extended stock to ensure availability.

Features

• Lifetime warranty on all piping and fittings
• Leak-free at 300 PSI & 300 °F
• Food-grade compliant
• Easiest installation and modification process
• High safety standards
• Fast shipping and product availability
• Zero maintenance required

Benefits

• Lightest product on the market
• Fastest installation time compared with alternatives
• Structural strength comparable to carbon steel
• Approximately one-tenth the weight of equivalent steel
• Tube and fittings made from non-corrosive marine-grade aluminium
• Guaranteed high-quality air delivery
• Design enables highest flow rates and lowest pressure drops
• System flexibility allows simple modifications and additions
• Lifetime leak-free guarantee
• Manufactured from 100% recyclable materials

Ease of installation
No welding, gluing or threading required. Minimal skill needed for professional installation. Tubing can be clipped to walls or suspended from ceilings and beams with nylon clips or wire hangers. No special tools required; components are adjustable for rapid, efficient installation.

Technical specifications

• Product family: Quick-Lock / Big-Lock
• Material: Solid aluminium (marine-grade) for tube and fittings
• Maximum working pressure: 300 PSI (rating applies across fittings)
• Maximum temperature rating: 300 °F
• Gas compatibility: Air, nitrogen, vacuum, inert gases
• Compliance: Food-grade compliant
• Warranty: Lifetime warranty covering piping and fittings in the series
• Maintenance: Zero maintenance (lifetime leak-free guarantee)
• Weight: Approximately one-tenth the weight of equivalent steel; lightest product on market
• Flow characteristics: Designed for highest flow rates and lowest pressure drops
• Corrosion resistance: Non-corrosive aluminium construction
• Recyclability: Manufactured from 100% recyclable materials
