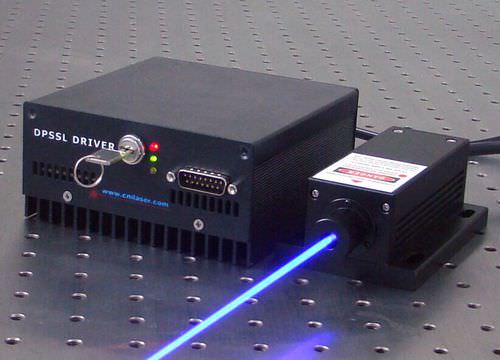

Continuous wave laser MDL-III-445
solid-statebluecompact

continuous wave laser
continuous wave laser
Add to favorites
Compare this product


Characteristics

Operational mode
continuous wave
Technology
solid-state
Spectrum
blue
Other characteristics
compact, multimode, diode
Wavelength

445 nm

Power

Min.: 0.08 W

Max.: 1 W

Description

Features: Diode laser module at 445 nm is made features of ultra compact, long lifetime, low cost and easy operating, which is widely used in scientific research, laser pointing, show and RGB mixed laser systems applications. SPECIFICATIONS Model :MDL-III-445 Wavelength (nm) :445±5 Operating mode :CW Output power (mW) : >80,90,…,500 >500,600,…,1000 Power stability (rms, over 4 hours) :<1%, <3%, <5% Transverse mode :Multimode Beam diameter at the aperture ((1/e2 ,mm) :<2.5×5.2 <2×5 Beam divergence, full angle (mrad) :<2.1×1.6 <2.5×0.2 Warm-up time (minutes) :<5 Beam height from base plate (mm) :24.8 Operating temperature (℃) :10~35 Power supply (85-264VAC) :PSU-III-LED/ PSU-III-FDA/ PSU-III-OEM TTL / Analog modulation :TTL or Analog with 1Hz-1kHz 1kHz-10kHz, 10kHz-30kHz optional Expected lifetime (hours) :10000 Warranty :1 year
