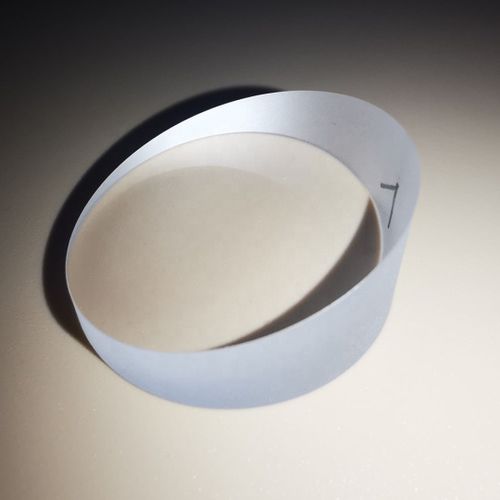

Optical wedge prism YTP014

precisionBK7custom-made

Place of Origin: China Brand Name: YT Model Number: YTP014 Material: Maf2 Surface Quality: 60/40 Dimension Tolerance: 0.0/-0.1mm Angle Tolerance: 3 Arcmin Flatness: 1/4 Lambda, L/4 Product name: BK7 Glass 30 degree 40/20 Polished Precision Optical Wedge Prisms Diameter: 3-400mm Clear Aperture: 90% Surface quality: 60/40 Shape:Wedge prism Angle tolerance:<30 sec. Bevel:0.25 mm*45° Chamfer: standard chamfers Coating: as customer's design Yutai Optics, we specialize in the design and volume manufacturing of high performance optical components such as lens,prisms,windows, filters,mirrors and more for use in optical instruments and laser systems, as well as for military,telecommunications,medical, environment monitoring industry,material is widely ranged from optical glass to IR and UV glass. As a Fast-growing supplier in Optics, Yutai Optics offers excellent service and good quality items,our products have been appreciated by many European and American customers,of course we build a long-term cooperation. YuTai Optics has quickly established itself as a leader in optical components from its advanced technology and quality control.
