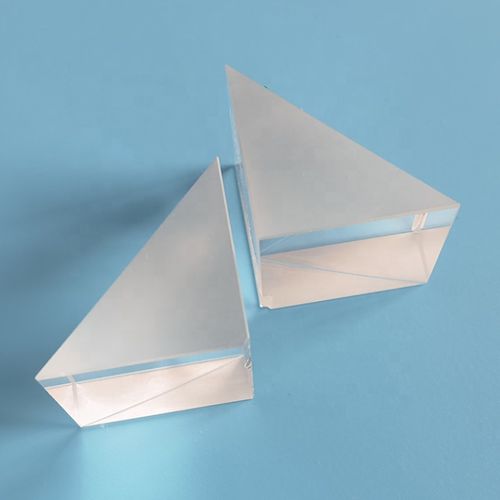

Right-angle prism YT-TPR0.21

BK7custom-made

Warranty: 2 months Customized support: OEM Place of Origin: Jilin, China Brand Name: YT Model Number: YT-TPR0.21 Material: K9 glass, K9 glass BK7 glass Surface Quality: 40/20 Dimension Tolerance: +0/-0.1mm Angle Tolerance: 3'~5' Flatness: L/4, L/4 Product name: Right angle prism Dimension: 7mm 10mm 20mm Angle tolerance: 3'-5' Surface quality: 40/20 Type: Triangle prism Tolerance: +0/-0.1mm Chamfer: 0.25mm*45 degree Coating: None Changchun Yutai Optics Co., Ltd. can customized various kinds of optical prisms according to requirements: 1.Materials of prisms can be K9 glass, fused silica,ZF3,F4 and so on( CDGM glass);(Also available for infrared material). 2.Dimension can be from 0.5mm to 400mm. 3.Surface quality can be 20/10,40/20,60/40 and flatness in L/4,L/2 etc. 4.It is available for AR coating, BBAR coating, BBR coating, hydrophobic coating and so on. 5.There are also some prisms in the stock to be test as sample. 6.It is also available to arrange the black painted glued mirror coating etc. as request .
