Controller enclosure 11A-45
wall-mountrectangularcast aluminum

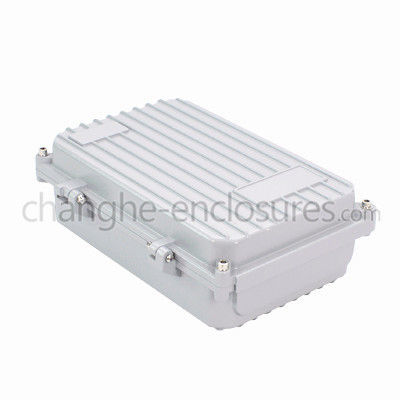

Controller enclosure - 11A-45 - CHANGHE - wall-mount / rectangular / cast aluminum
Controller enclosure - 11A-45 - CHANGHE - wall-mount / rectangular / cast aluminum
Controller enclosure - 11A-45 - CHANGHE - wall-mount / rectangular / cast aluminum - image - 2
Controller enclosure - 11A-45 - CHANGHE - wall-mount / rectangular / cast aluminum - image - 3
Controller enclosure - 11A-45 - CHANGHE - wall-mount / rectangular / cast aluminum - image - 4
Controller enclosure - 11A-45 - CHANGHE - wall-mount / rectangular / cast aluminum - image - 5
Controller enclosure - 11A-45 - CHANGHE - wall-mount / rectangular / cast aluminum - image - 6
Add to favorites
Compare this product
Go to the CHANGHE website for more information

Characteristics

Construction
wall-mount
Configuration
rectangular
Material
cast aluminum
Application
industrial, electronic equipment, indoor, outdoor, for controllers
Protection level
IEC, dust-proof, waterproof, standard, IK 08, halogen-free, chemically resistant, corrosion-resistant, flame-retardant, IP65, EMC
Other characteristics
custom, sealed, protection
Width

219 mm
(8.6 in)

Height

104 mm
(4.1 in)

Description

Internal size: 278mm x177mm x91mm (LxWxH) Wall-mounting size: 240mm x98mm Mounting plate size: 257.5mm x164mm IP 65 watertight and dust-proof Can be used at a wide range of operating temperatures:-40 to 120 ℃ Excellent EMC performance Powder coatings offer quality corrosive resistance Ingress protection - IP65 IEC60529:2001 Impact protection - IK08 IEC62262:200 Temperature range (short term) - -40℃ ~ 120℃ IEC60068:1997 Temperature range (long term) - -20℃ ~ 80℃ IEC60068:1997 Chemical Resistance - Good Flammability rating - Highly flame resistant Non-toxicity - Halogen Free RoHS - RoHS compliance When a standard enclosure isn’t exactly what you need, CHANGHE is able to offer 'one stop solution' for the ideal enclosure modification: 1. Mold Fabrication 2. Cutouts 3. Custom Color 4. Silk-screen Printing 5. Special Shielding Material 6. Fire-retardant Materials

Catalogs

Go to the CHANGHE website for more information

Other CHANGHE products

Aluminium Control Enclosures
